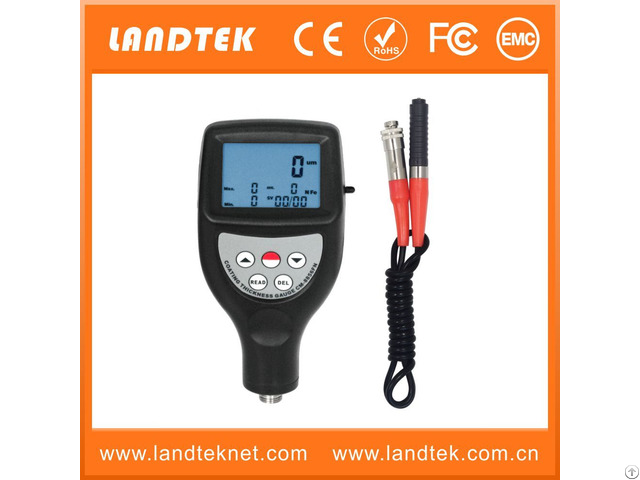

Landtek Statistical Type Coating Thickness Gauge Cm 8856 - Chinaprice: contact company for price
Statistical Type Coating Thickness Gauge CM-8856 has two measuring methods to choose.How to choose?
Measuring method:F probe
*paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.(non-magnetic materials)
*alvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer,
copper tile, aluminium tile, some alloy tile, paper etc.
Base:iron, nickle etc.(magnetic materials)
Measuring method:N probe
Coating:anodizing, varnish, paint, enamel, plastic coatings, powder, etc.(non-conductive coatings)
Base:aluminum, brass, non-magnetic stainless steel, etc(non-magnetic materials)
* Can store the new data in 99 groups.
* Two measuring methods: magnetic induction (F) and eddy current (N).
* Two measurement mode: Single and Continuous
(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value, and automatic recognize the substrate.
* Operation process have buzzing reminder, while no buzzing in continuous mode.
* Use USB data output and RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
* Separate Type can provide several type probe, measure can be more flexibility.
Operating Principle:Magnetic Induction / Eddy Current (F / NF)
Measuring Range:0~1250 um / 0~50 mil
Resolution:0.1 um / 1 um
Min. Radius Workpiece:F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm
Min. Measuring Area:6 mm
Min. Sample Thickness:0.3 mm
Accuracy:± 1~3%n or ± 2.5 um
Auto Power Off
Metric / Imperial:Convertible
Battery Indicator:Low Battery Indicator
Operating Conditions:Temp. 0~40 °C, Humidity: 10~90 %RH
Power Supply:2 x 1.5 V AAA (UM-4) Battery
Dimensions:126 x 65 x 35 mm
Weight:81 g (Not Including Batteries)
1. Main Unit
2. Probe (F Type / NF Type)
3. Calibration Base Set (F Type / NF Type) CTG-BS
4. Calibration Foils CTG-CF (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
