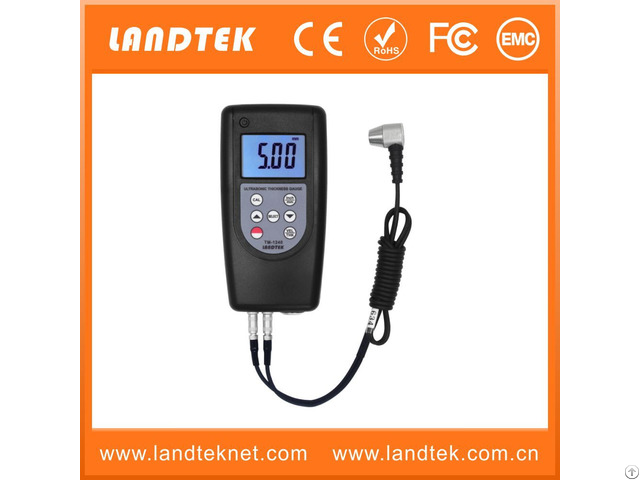

Landtek Ultrasonic Thickness Meter Tm 1240 - Chinaprice: contact company for price
Used for measuring thickness and corrosion of:
*Pressure vessels, chemical equipment.
*Boilers, oil storage tanks, etc.in industries of petroleum.
*Shipbuilding, power station, and machine manufacturing.
*Measture the cast iron thickness, aluminum thickness, quartz glass thickness, PVC thickness, PE thickness, red copper thickness etc.
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use USB data output and RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Display:4 Digit, 10 mm LCD
Operating Principle: Ultrasonic
Measuring Range (metric / Imperial): 0.75~400mm (45# steel) (Depend on Probe)
Battery Indication: Low Battery Indication
Sound Velocity: 1000~9999 m/s
Lower Limit Steel Pipes: Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer
Calibration Block: Included
Resolution:0.1mm / 0.01mm / 0.001inch
Accuracy:± (0.5%n + 0.1)
Automatic memory material code and the value of sound velocity
Power off: Auto Power off & Manual Power Off
Operating Conditions: Temperature: 0~40 °C, Humidity: < 85 %RH
Power Supply: 4 x 1.5 V AAA (UM-4) Battery
Dimensions:140 x 72 x 34 mm
Weight:185 g (Not Including Batteries)
1. Main Unit
2. 5MФ8 Standard Sensor
3. Coupling Agent
4. Carrying Case
5. Operating Manual
1. 6M Φ6 mm thin Material Probe :
Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C
2. 5M Φ12 mm High Temperature
