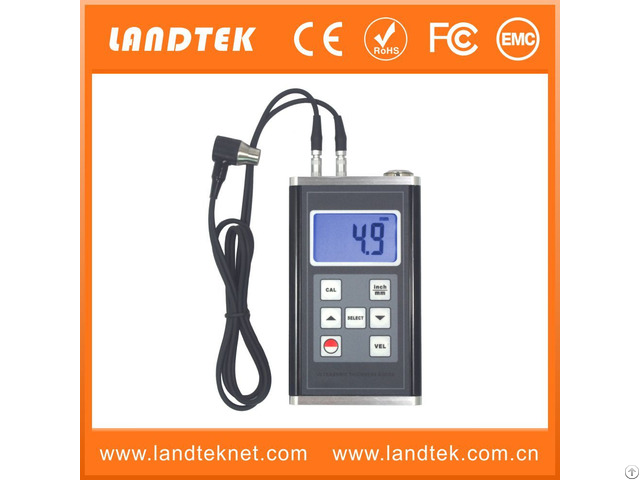

Landtek Ultrasonic Thickness Meter Tm 8818 - Chinaprice: contact company for price
Used for measuring thickness and corrosion of:
*Pressure vessels, chemical equipment.
*Boilers, oil storage tanks, etc.in industries of petroleum.
*Shipbuilding, power station, and machine manufacturing.
*Measture the cast iron thickness, aluminum thickness, quartz glass thickness, PVC thickness, PE thickness, red copper thickness etc.
* Using the latest high performance and low power consumption microprocessor technology.
* Bidirectional measurement, for materials within measurement range, thickness is measurable with know velocity, Conversely velocity is measurable with know thickness.
* Automatic memory material code and sound velocity value, convenient to use.
* Coupling symbol indication.
* Automatic power off to conserve power.
* Use USB data output and RS-232 data output to connect with PC.
Case Material: Aluminum Alloy
Display: 4 Digit LCD
Operating Principle: Ultrasonic
Measuring Range (metric / Imperial):0.75~400 mm ( 45 # steel, Depend on Probe )
Battery Indication: Low Battery Indication
Sound Velocity: 500~9, 990 m/s
Lower Limit Steel Pipes: Φ20 x 3.0 mm
Calibration Block: Included
Resolution:0.01 mm / 0.1 mm
Accuracy: ± (0.5%n + 0.05)
Automatic memory material code and the value of sound velocity
Power off: Auto Power off & Manual Power Off
Operating Conditions: Temperature: 0~40 °C, Humidity: < 85 %RH
Power Supply: 2 x 1.5 V AA (UM-3) Battery
Dimensions:130 x 76 x 31 mm
Weight:340 g (Not Including Batteries)
1. Main Unit
2. 5MФ8 Standard Sensor
3. Coupling Agent
4. Carrying Case
5. Operating Manual
1. 6M Φ6 mm thin Material Probe :
Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C
2. 5M Φ12 mm High Temperature Probe:
Measuring range (steel): 1.0~225.0 mm (normal temperature)
Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C
3. Curved Surface Probe
4. USB, RS-232C data cable with software
