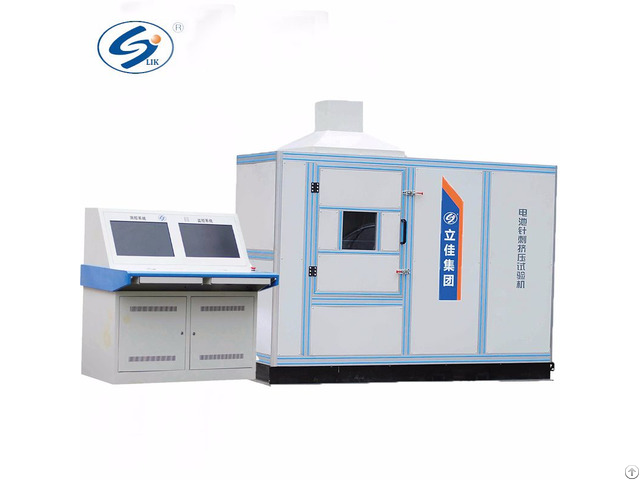

Li Ion Battery Safety Performance Crushing Squeezing Tester - China

Application Through real-time test data ( battery voltage, max, battery temperature, pressure voltage data) to test battery safety performance by crushing & nail-penetration and judge test result on the condition of no flame, smoke, explosion after test.

Function description(Li-ion Battery Safety Performance Crushing/ Squeezing tester) Power battery crush and puncture test machine has up to 50KN-5000KN pressure, Driving a large stroke cylinder by an independent hydraulic system, oil cylinder drive the extruding plate to do the test of the extruding and deformation of the battery.

The test panel can be adjusted up and down slightly to obtain the best test position.

It could do both piercing and extrusion, and can provide different extrusion deformation and duration according to the set program.

In the work, the corresponding program can be selected according to the purpose of the test, and get the test date you need.

Specification(Li-ion Battery Safety Performance Crushing/ Squeezing tester) Model LJ-832-5T LJ-832-20T LJ-832-50T LJ-832-80T LJ-832-100T LJ-832-500T Max.

Pressure(KN) 50KN 200KN 500KN 800KN 1000KN 5000KN Oil pressure stroke(mm) 500 800 1000 1000 3000 3000

Application of battery Single battery cell or joint battery cell package(not applicable 3C battery cell)

Equipment Weight ≈2.5T ≈2.8T ≈3.0T ≈3.2T ≈3.5T ≈3.5T

Crush/Nail-penetrate space H*W*D(cm) 50*50*50 80*80*80 60*60*100 200*200*80 300*200*100 300*200*100

Nail-penetrate Speed 1~ 50mm/s (adjustable)

Crush Speed 1mm/s-500mm/m(adjustable)

Displacement control Speed 0-25mm/s

(Automatic speed regulation of proportional valve) 0-45mm/s(Automatic speed regulation of proportional valve)

Temp.

Sampling Range 0 ~ 1200ºC

Voltage Accuracy ±1%FS

Temp.

Resolution 0.1ºC

Crush/Nail-penetrate Accuracy ±1%

Displacement control Accuracy ±1%

Structure horizontal horizontal horizontal horizontal horizontal horizontal

Crush/Nail-penetrate Remaining Time 0~99 hours 99mins 99secs

Driven Method Hydraulic

High Temp.

Resistant Steel Needles Diameter φ5mm~φ8mm(for battery cell); Diameter φ6mm~φ10mm(for modular experiment)

Control Method PLC Touch Screen & Computer Remote Control

Safety Alarm Device Electric leakage, Over temperature, Over voltage, Over loading, Over current protection, abnormal sound light alarm, smoke alarm etc.

Safety Device Camera monitoring system, Fire-extinguishing system, Explosion-proof system, Smoke evacuation system, Explosion-proof lighting devices etc.

Power AC380V

Customized service Welcome to Non-standard, Specail requirements, OEM/ODM orders.
