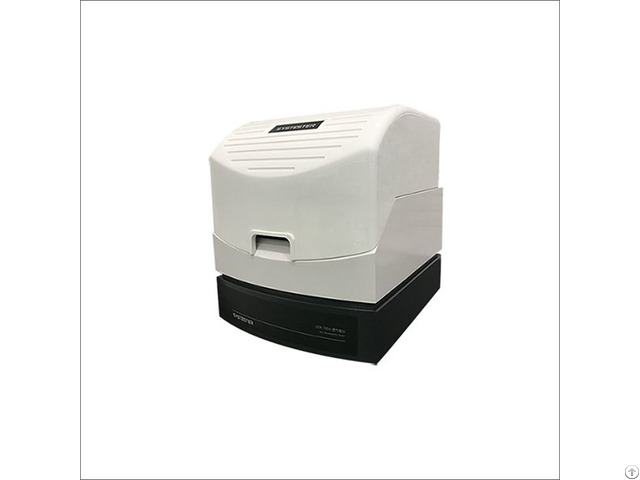

One Key Input Parameters Of High Efficiency Gray Permeability Instrument - China
price: 100.00 Dollar US$
One Key Input of Parameters of High Efficiency Gray Permeability Instrument Application Gas Permeability Tester is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, laminated films, high barrier materials, sheeting, metal foils, rubber, tires and permeable membranes.
Gas Transmittance Separation Membrane Gurley Air Permeability Testing Equipment Lab Test One Key Input of Parameters of High Efficiency Gray Permeability Instrument Features Vacuum differential pressure method Patent technology 3 specimens test simultaneously and independently Computer control One-button test, test automatically through whole process High accuracy vacuum sensors embedded in 3 Chambers with independent temperature sensor Test under various RH conditions with Humidity generator (optional) Environment temperature and humidity sensor inside Permeability coefficient, solubility coefficient and diffusion coefficient test Chambers with water bath temperature control technology Unit based on embedded system, 24bit Δ-Σ AD Multiple test modes optional Data curves display Traceable reference film calibration Supports DSM system (DSM, lab data management system) One Key Input of Parameters of High Efficiency Gray Permeability Instrument Technical Indexes Test Range 30~60, 000 Gurley seconds(Standard)
0.0021~200um/Pa.
s(St andard)
300~60, 000Gurley seconds(Optional)
0~60, 000 Gurley seconds(Optional) Resolution 0.1 Gurley seconds
Sample Amount 1 (Standard);3 can be customized.
Differential Pressure 0.01kPa~20kPa(STD:1.2 2kPa) Accuracy 0.01kPa
Test Area 1.0in2 - (0.25in2, 0.1in2 optional)
Sample Thickness ≤5mm
Test Gas Air, O2, N2, CO2(Self-provide)
Gas Resource 0.3MPa~1.0MPa
Interface Ф6mm
Dimension 320mm(L)×380mm(D)×410mm (H)
Power Supply AC 220V 50Hz
Net Wt.
25 kg
Company Contact:
- Posted By: SYSTESTER Instruments Co.,Ltd
- Phone: 18765316730
- Address: Meili Road, Jinan , Shandong , China
- Email:
- Website: https://www.systester.com
Published date: April 23, 2019
- Business Description: SYSTESTER Instruments Co., Ltd is a leading manufacturer of package testing instruments and have over 20 years experience.
SYSTESTER is a professional provider of integrated package testing solutions and instruments of food and pharmaceutical industries, dedicates to cutting-edge technology research and development.
SYSTESTER assists you to solve all flexible packaging problems and makes production profit maximization depending on the creative thought and technical abilities.
SYSTESTER is a modern company with family kind culture, passion, innovation concept and scientific management.
