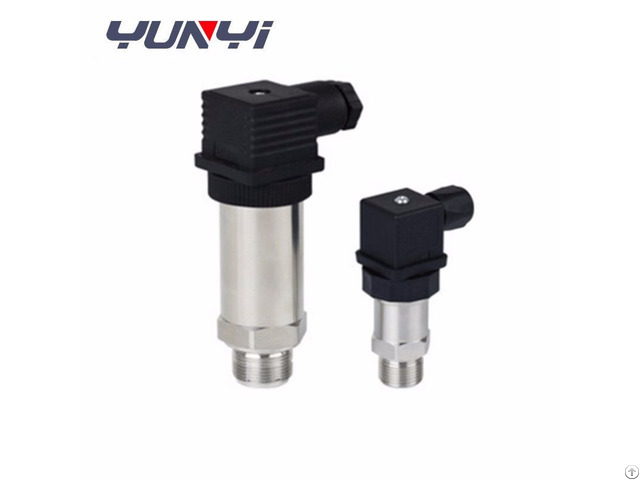

Precision Pressure Transducer - China
price: contact company for price
precision pressure transducer
1 - Measuring media: oil, water, gas and other media compatible with 316L stainless
steel
2 - Sensor: Ceramic sensor
3 - Range: 0 .
2~ 40MPa
3 - Pressure: 2 times the range (10MPa or less, more may contact); 1.5 times the range
(10MPa or more, higher may contact)
4 - Accuracy: ± 0.25% FS
5 - Nonlinear: <± 0.2% FS
6 - Hysteresis and repeatability: ≤ ± 0.1% FS
7 - Long-term stability: ≤ ± 0.1% FS / year
8 - Zero drift: ≤ ± 0.02% FS / ℃
9 - Response time: ≤500ms (standard) welcome.
Regards, Katerina
Xi'an Yunyi Instrument Co., Ltd Skype: wangxiaoyuncalar
Tel: 0086-029-88812007
WhatsApp: +86-136691804 41
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co., Ltd
- Phone: 00862988812007
- Address: Room 1203B, Inland Port Mansion, No.9 Gangwu Road, Xi an International Trade & Logistics Park, X, Xi'an , Shaanxi , China
- Email:
Published date: May 28, 2018
- Business Description: Professional manufacturer pressure transmitter, pressure gauges, pressure calibrator and deadweight tester.
And we also develop valves, flow meter, temperature transmitter, level transmitter, densitometer etc.
They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
