Rosemount 2090p - China

price: contact company for price

Product Description

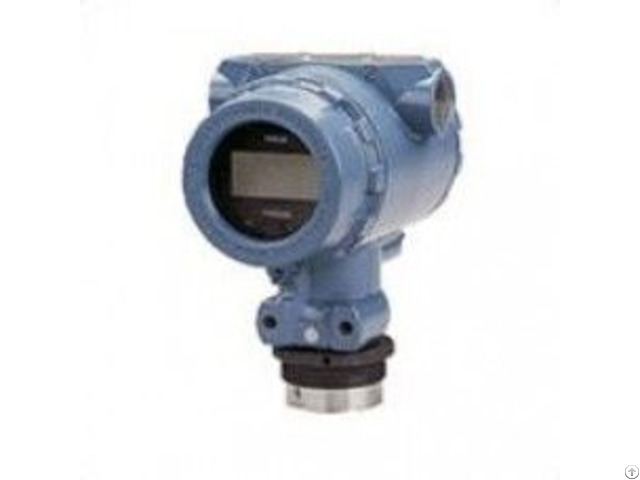

With its compact size and rugged construction, the Rosemount 2090P Pulp and Paper Pressure Transmitter is ideal for the pulp and paper industries. This lightweight transmitter is engineered with a 1 in. flush mount compatible with PMC process connection or 1 1/2 in. threaded mounting connection. This transmitter can be calibrated to ranges as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 300 psi (20.7 bar) for reliable measurement capabilities. Specifications
Measurement Type
Gage, absolute
Accuracy
Up to ±0.10% of span
Stability
±0.10% of Upper Range Limit (URL) for 12 months
Warranty
Up to 5-year limited warranty
Rangedown
Up to 20:1
Communication Protocol
4-20 mA HART®
Measurement Range
Up to 300 psig (20, 7 bar) Gage, Up to 300 psia (20, 7 bar) Absolute
Process Wetted Material
316L SST
Diagnostics
Basic Diagnostics
Certifications/Approvals
Hazardous location, see full specs for complete list of certifications Features

1 in. flush mount compatible with PMC process connection or 1 1/2 in. threaded mounting connection available

Calibrates as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 300 psi (20.7 bar) for application flexibility

Lightweight, compact design for easy installation

Fully configurable LCD displays process variable, percent of range and diagnostic message

Communicates via 4-20 mA HART® protocol for streamlined host integration
