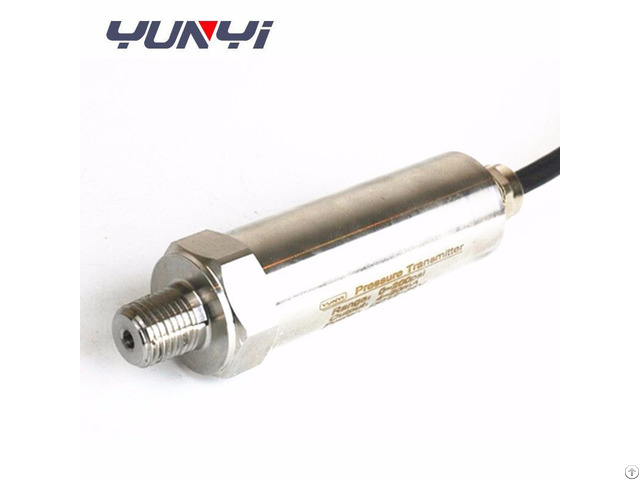

Sensors Used To Measure Pressure - China
price: contact company for price
sensors used to measure pressure Materials:
1 - Wetted parts: 316L stainless steel
2 - Shell: 304
3 - Seals: Viton, optional: EPOM, NBR
4 - Diaphragm: 316L stainless steel
Other specifications:
1 - Process connection: M20 × 1.5 external thread (standard) (optional other
connections)
2 - Material: 316L stainless steel wetted materials; Shell: 304
3 - Protection class: IP 65
4 - Medium temperature: -30 ~ 80 ℃
5 - Ambient temperature: -40 ~ 80 ℃
6 - Storage temperature: -40 ~ 100 ℃
7 - Earthquake: 108 RMS (25 ~ 2000HZ)
8 - Ex: Ex ia IIC T6 intrinsically safe
9 - Current Limit: The maximum current-24mA; voltage-largest 5mA
10 - Certification: CE, ISO
11 - Installation position: vertical installation is recommended, as there will be other
installation extremely slight zero offset
Regards, Katerina
Xi'an Yunyi Instrument Co., Ltd Skype: wangxiaoyuncalar
Tel: 0086-029-88812007
WhatsApp: +86-136691804 41
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co., Ltd
- Phone: 00862988812007
- Address: Room 1203B, Inland Port Mansion, No.9 Gangwu Road, Xi an International Trade & Logistics Park, X, Xi'an , Shaanxi , China
- Email:
Published date: May 28, 2018
- Business Description: Professional manufacturer pressure transmitter, pressure gauges, pressure calibrator and deadweight tester.
And we also develop valves, flow meter, temperature transmitter, level transmitter, densitometer etc.
They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
