Soil Automatic Consolidation Test Apparatus It Is Used To Determine The Relationship Between Deforma - China

price: contact company for price

Test projects is depended on the project need

direct shear is a device to test shear strength of soil, that is respectively Under different vertical pressure, Applying horizontal shear to shear, shear stress are obtained when damage. We can determine the shear strength parameters, internal friction Angle and cohesive force according to the coulomb' s law.

Three kinds of shearing: A quick shear test Bconsolidated quick direct shear test C、 Slow shear test

technical parameters

. voltage 380V 220V±10V 50Hz

. Power: refrigeration 2kW heating 1kW Consolidation shear 1.2kW

. vertical pressure : Adopt pneumatic servo control, set the required pressure 12.5kPa、 25 kPa、 50 kPa、 200 kPa、 800 kPa、 1600 kPa、 3200kPa

. vertical deformation: 0- 15mm±0.01mmdisplacement meter

. shearing rate: stepless speed regulation ( 0.02mm/ min、 0.06mm/ min、 0.8mm/ min、 1.2mm/ min、 2.4mm/ min)

. shear deformation: 0- 15mm±0.01mmdisplacement meter

. The sample area30cm² 50cm²Also can choose the sample whose inner diameter is 100 mm, 50 mm test)

. Composition: host, pressure control system, acquisition controller, air pump, PC software, sensors, etc

. RS232 interface can connect the computer, The software runs under Windows XP operating system. It can realize automatic storage print and export function of data acquisition instrument. Shear rate, shows that the maximum vertical stress, deformation, shear force and deformation can be set on Computer interface .


Company Contact:


  • Phone: 15809271093

  • Address: Room 1650, Unit 1, Block 3, Yicui Garden, I Metrop, xi'an , China

  • Email: Email


Published date: April 24, 2015 -

  • Business Description: Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in two aspects: one is civil engineering research and experimental apparatus; another is the semiconductor laser research and development.

Related listings



  • Liquid Limit Device Warranty 1 Year
    Liquid Limit Device Warranty 1 Year
    Equipment - Testing / Measuring - Xi’an Zealchon Electronic Technology Co.,Ltd - China - April 24, 2015 - contact company for price

    Liquid Limit Device / Casagrande Method It intends to measure liquid limit of soil and Calculates the natural viscosity of soil. It is suitable for the soil whose partical sizeis less than 0.5mm and the soil whose organic content is less than 5% . te...

  • High Precision V30 Gnss Gps Rtk System
    High Precision V30 Gnss Gps Rtk System
    Equipment - Testing / Measuring - Chongqing Gold Mechanical & Electrical Equipment C - China - April 17, 2015 - contact company for price

    The V30 GNSS RTK system is designed to meet high quality standards at an affordable price. It is outstanding in its class, with a rugged design and user- friendly functions. Multi- constellation tracking 220 tracking channels. Supports GPS, GLONASS, ...

  • Hottest China Surveying Instrument With Three Satellite For Optional

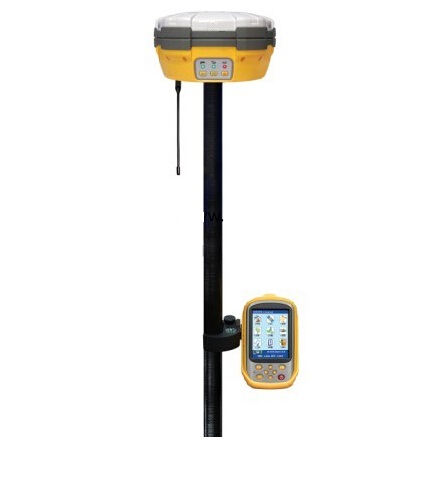

    Hottest China Surveying Instrument With Three Satellite For Optional
