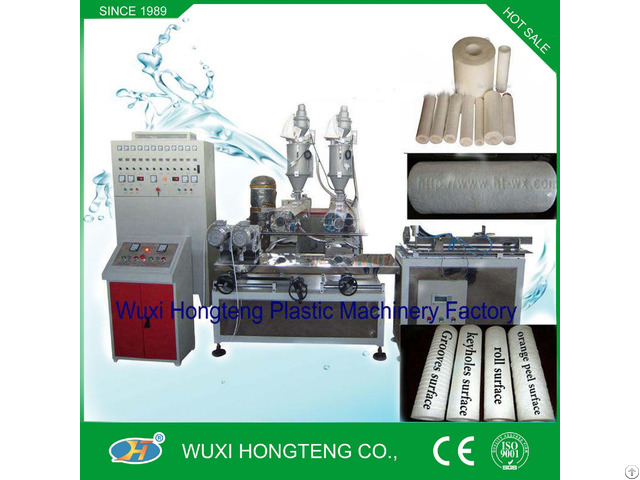

Fully Automatic Pp Melt Blown Filter Cartridge Making Machine - China
price: 42000.00 Dollar US$
Production capacity 3500-4200pcs/24hours(On the basis of 10’’ length, ID=28mm, OD=58mm~60mm, 100g) ( If workshop temperature is between 10 and 25 degree, Production capacity will be larger)
Rated power 55KW/Hour
Running power 27KW~32KW/Hour .
For complete production line including air compressor and molds clean oven.
Raw material Polypropylene(Fiber Grade)
Internal diameter(Default) 28mm (We could do other internal diameter according to customer’s request) Outer diameter(Default) 38mm~120mm( on the basis of ID 28mm.
)
length 5’’, 10’’, 20’’, 30’’, 40’’100’’
Filter precision 1um, 5um, 10um, 20um, 30um100um
Surface of filter cartridge • Smooth surface
• Orange peel surface
• Grooves surface(Needs grooving machine )
• Dotted & Roller surface (Needs extra tool )
• Logo on surface (Needs carving machine carve logo & company name on the surface
Machine weight 3.9Tons, 4.2T after packing
Layout 50M2 is enough.
150 M2 is better.
(L8m*W8m*H2.6m)
rs
Company Contact:
- Posted By: Wuxi Hongteng Plastic Machinery Factory
- Phone: +86 13812542739
- Address: NO.34 Hongxiang road hongshan town, Wuxi , Jiangsu , China
- Email:
- Website: http://www.ht-wx.com
Published date: May 5, 2017
- Business Description: pp melt blown filter machine &melt blown filter cartridge; CTO carbon block filter machine & CTO carbon filter cartridge and GAC filter cartridge; PP winding filter machine &pp winding filter cartridge
