Ip68 Protection Class And 10 Years Battery Life Residential Water Meters Modbus - China

IP68 Protection Class and >10 years Battery Life residential water meters Modbus

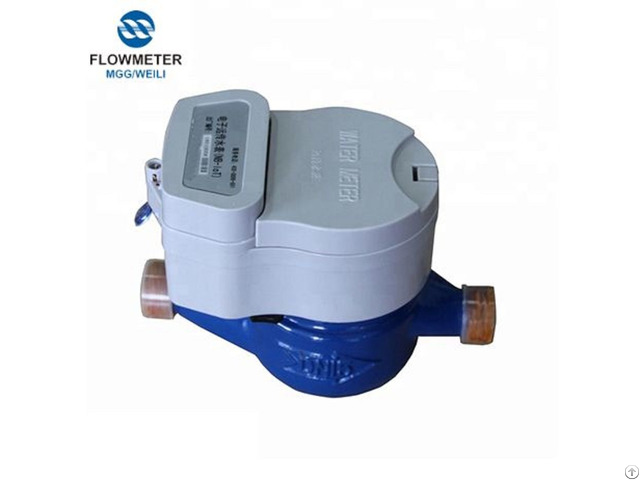

Brass Digital Water Flow Meter, Ultrasonic Flowmeter Manufacturer

Quick Details:

Place of Origin Henan, China (Mainland) Brand Name WEILI Model Number WEILI

Product Name Digital Water Flow Meter Feature High Precision Size DN15~DN50

Certificate ISO4064 ISO9001: 2008 Standard ISO 4064 ClassB Application Widely

Name 10 years Battery Life residential water meters Modbus Type Wet Material Brass Product Overview:

Ultrasonic water meter is to detect ultrasonic waves in the water downstream and countercurrent propagation time difference, This new all-electronic water meter is calculated by the program analysis and processing of water flow rate and then calculate the water flow.

Data sheet

Item Unit Detailed data

Nominal Diameter mm 15 20 25 32

Overload flow Q4 m³/h 3.125 5 7.875 12.5

Permanent flow Q3 m³/h 2.5 4.0 6.3 10

Q3/Q1 250 200 250 200 250 200 250 Transitional flow Q2 m³/h 0.025 0.02 0.04 0.032 0.063 0.05 0.1 0.08

Minimum flow Q1 m³/h 0.016 0.013 0.025 0.02 0.039 0.032 0.063 0.05

Accuracy class Class 2

Temperature class T30, T50, T70, T90

Working pressure MPa 1.6

Pressure class MAP10

Pressure loss class △p63

Flow profile sensitivity class U10/D5

Climate & Mechanical environment class Class B；

Installation Position Horizontal or vertical (Down water supply) Main Features:

-- No mechanical movable parts, Impurities in water can't be affected, Long service life.

-- Compared with the traditional mechanical water meter, the ultrasonic water meter can be measured and has wide range of measurement .

It can be measured when it has very small traffic .

-- There are many alarm functions：Battery voltage can alarm, empty tubes or pipes that are not full of water, transducer fault alarm and more

-- Low-power design and the use of high-energy batteries, can work for 6 years or more.

-- The communication interface is M-BUS and Rs485, it can easily achieve remote real-time monitoring and management on the LAN.
