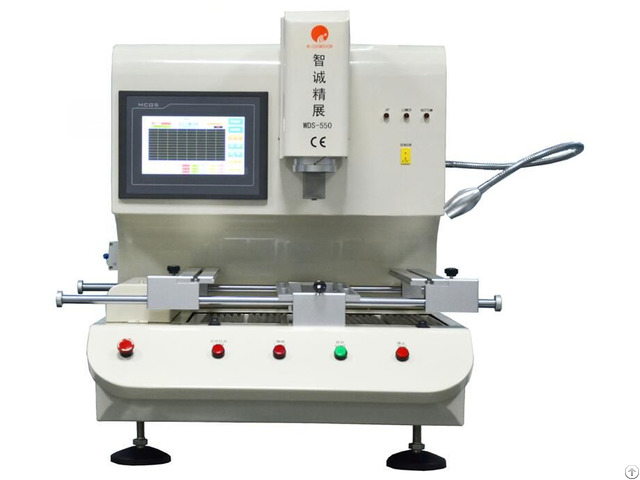

Best Price Semi Auto Laptop And Desktop Chip Level Repairing Systems Wds 550 - China

price: check with company for price

Main features:
1.Laser position to locate fast
2.Hot air&IR to protect the motherboard
3.3 heating zones
4.Can adjust the second heater height
5.Pick up chips automatically
1.Total Power:4800W
2.Upper Heating Power:800W
3.Lower Heating Power:Second zone:1200W, Third zone: IR 2700W
4.Power Supply:AC 110V/220V±10% 50/60HZ
5.Overall Dimension:L790*W780*H700mm
6.Locating Mode:V-shape card slot, PCB holder can be adjustable by X and Y axes with universal jigs.
7.Temperature Controlling :K-type thermocouple closed loop control, independent temperature control, precision up to ±2 degree
8.Electrical Material:High sensitive temperature control module+ Delta PLC, +Touch Screen made-in Taiwan+Step driver
9.PCB Size:Max 400*370mm, Min 10*10mm
10.Thermocouple Ports:1 unit
11.PCB thickness:1-5mm
12.Applicable chip:1*1mm-70*70mm
13.Weight of machine:40KG
1.Adopts mechatronics design, Z axis adopts step driver, the upper heater can move up and down automatically;the upper heater and placement head are designed 2 in 1, can pick up BGA automatically;with laser position, can locate the chips place fast, easy to use.

2.Equipped with touch panel interface and PLC controlling to ensure it work stably and reliably. And it can storage multiple temperature profiling data of users. With password protection and modification function while power on. The temperature profiles will be displayed on the touch screen.

3.Three temperature zones to heat up independently, hot air heat up between up and down zones, IR heat in the bottom, temperature precise control is in±2 degree.the up heating head can remove the BGA chips automatically;the second zone can be adjusted up and down. The top and bottom heaters can be set several segments control at the same time. IR heating zone can be adjusted output power in the light of operation requirements.

4.The hot air nozzle can be rotated in 360 degree, the IR heater in the bottom can heat up the PCB board uniformly.

5.High accuracy K-type thermocouple closed-loop controlling. It can test temperature accurately through external temperature measurement interface, PCB board positioned by closed V-shape slot. The flexible and convenient universal jigs can prevent any damage or PCB deformation as well as it is suitable for all size of BGA package.

6.Large power fan to cool down the PCB quickly. The built-in vacuum pump and external vacuum nozzle is able to take BGA chips out automatically.

7.Having alarm prompt function after welding is done, specially added early warning function for convenient operation.

8.It has Passed CE certificate. It is equipped with emergency stop switch and protection equipment to power off automatically when abnormal accident happened. Under this situation that temperature is out of control, circuit can automatically cut off the power with double over temperature protection function.
1. How many days can we get the machines ? How many delivery ways can we chose?
The specific time according different shipping ways you chose.
By DHL, Fedex, UPS, etc (Door to Door Service), about 3-7 days to arrive
By Air to your airport (Door to Airport Service ), about 3-5 days to arrive.
By Sea to the seaport, about 30 days to arrive.

2. How about the package ? Is it safe during the delivery ?
All BGA rework machine is packed by standard strong wooden box with foam inside.
It can guarantee the safety of shipping.

3. Can you provide the warranty ? How about the after sales service ?
We have professional after sales team, supply 1 year warranty free for spare parts and whole life technical support. if any question, contact us in any time.

4. This machine is easy to operate? Do you provide the user manual to help me ?
Yes, we will provide the English user manual and can change the language as your requirement.The machine is humanized designed, do not worry, it is easy to operate.

5. What is the payment way ?
We accept the payment terms: Bank transfer, Wester Union, Moneygram, Paypal, Alibaba Pay, Aliexpress Pay, Credit Card etc.

Any other questions, Pls send INQUIRY , or CHAT with us, we will try our best to help you.
