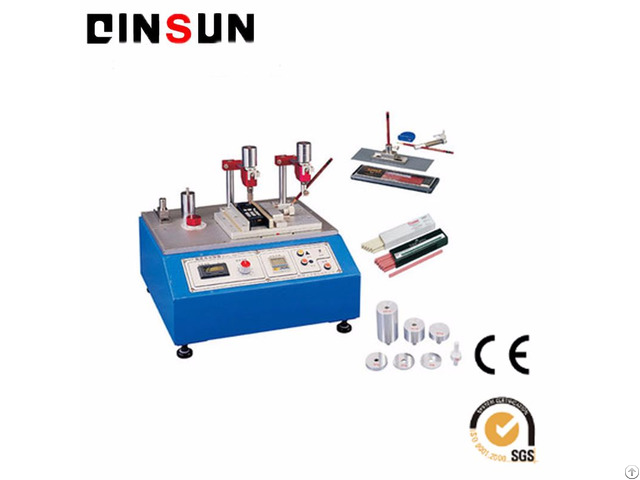

Alcohol Abrasion Resistance Tester Complies With Ul817 - China
price: 1.00 Dollar US$
This machine adopts variable convex shaft structure, the Japanese origin of ball drive to make it work with the servo motor can make about duplex movement, and has an adjustable test speed and functionality of stroke (without shutdown), adjustment is very easy.
Test speed can be displayed, and set the number of trials; to achieve a variety of products for injection surfaces, such as silk screen printed for abrasion life test, the friction medium: eraser, cotton and so on.
This equipment is widely used in plastic, wire, electrical appliances, leather and other manufacturing industries.
The Alcohol abrasion resistance tester complies with UL817 and other relevant standards "special rubber fixed to the machine friction rub hammer surface to a certain load and frequency requirements for safe use of the provisions" applicable to manufacturers and quality control departments for mobile phones, keyboards and other accessories surface resistance grinding test, to assess its degree of wear.
Specifications:
Test load: 60 ~ 1000g
Maximum load: 5kg
Test Stroke: 10 ~ 80mm (adjustable)
Test speed: 10 ~ 100rpm / min
Speed mode: Knob
Load weight: 50, 80, 100, 200, 500g
Machine Size: 450 * 380 * 460 (W * D * H) mm
Machine Weight: 25kg
Power source: 220V, 50HZ
Get Attached: 2 Malaysia 7017R eraser
Abrasion test machine features:
The test machine can do alcohol, pencil eraser abrasion and scratch three tests Fixtures:
1, eraser test fixture
2, alcohol friction test head (with a standard white cotton can be used wet or dry friction friction)
3, pencil scratch jig
