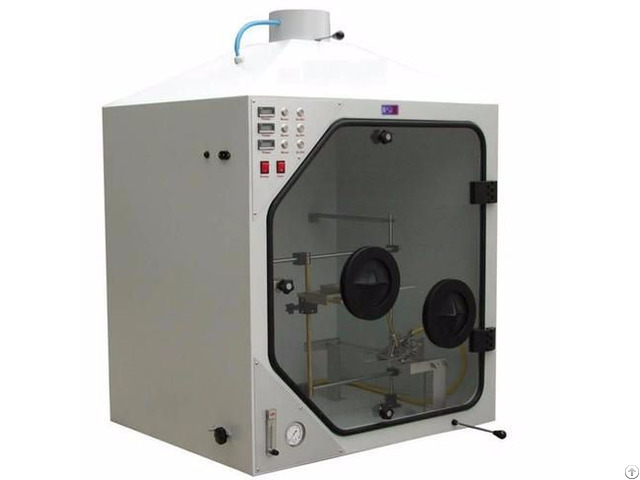

Construction Materials Flammability Tester - China

The main purpose:

Flammability Tester for Construction Materials is used to detect a variety of building materials and combustion performance measurement and control performance exterior insulation system, with touch-button design, high-voltage electronic ignition system, servo motor control and many other technologies.

Structural features:

1 - Chamber material: stainless steel mirror

2 - Test folder: two U-shaped stainless steel frame structure with a thickness of 5.0mm

3 - burner: a 45 degree angle with the horizontal

4 - flue air flow rate: 0.7m / s

5 - anemometer measurement accuracy: ± 0.1m / s Standard:

GB8626－2007, ISO11925-2: 2002, GB/T10801.2－2002 The main parameters:

1 - nozzle diameter: ¢ 0.17mm

2 - The flame height: (20 ± 1) mm

3 - The ignition timing: 15s, 30s

4 - Use gas purity: 95% or more of propane gas

5 - Sample size: 250mm × 90mm, 250mm × 180mm

6 - The specimen thickness: ≤60mm

7 - The ambient temperature (23 ± 5) ℃ relative humidity (50 ± 20)% RH

8 - Power: AC220V ± 10% 50HZ

9 - Carton Size: 400mm * 700mm * 810mm Main feature:

1 - box test apparatus using the S304 from stainless steel plate bending, beautiful shape, smooth lines, smoke resistant, corrosion-resistant, anti-aging, durable.

2 - The test device is equipped with a burner flame measurement scale, the burner flame adjustment convenient, flexible and accurate.

3 - The sample holding structure according to the standard required by strictly making the specimen clamping, fast, good combustion results.

4 - The touch-button design, servo motor control, automatic ignition reset.

5 - Used in universities, research institutes, testing units, insulation materials production enterprises
