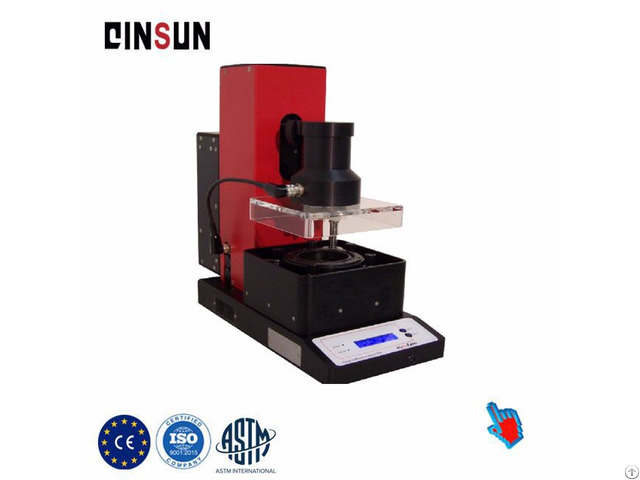

Digital Fabric Softness Tester - China

Digital Fabric Softness Tester is for the leather and textile fabrics and other soft fabric soft-test design

Put the material in a known test hole on the aperture, and a specified load imposed on the fabric, the softness index will be indicated by the gauge.

The new type of concrete works softness measuring method is as follows: The main components of the instruments are a rotor, a vibration sensor and other sensors used to collect additional data and control instrument functions.

For the measurement, the sample rests on the rotor, when the rotor starts to rotate to reach the final position.

Mutual contact between the rotor and the sample so that the sample vibrate.

After the vibration sensor receives the vibration signal, which is transmitted to the analysis component.

Analysis component prepared good data transfer to the computer.

Then, through a complex computer calculations of these data are processed.

Use a complex formula, the parameters measured by synchronizing further parameters and customer pre-entered (the maximum you can use 68 different parameters) to calculate the value of soft.

Software: friendly interface, simple operation.

Test data can be stored for a long, always call data storage software, data were compared with the current test.

Sample size: φ112.8 mm

Measurement: smoothness / roughness, softness, stiffness, feel value (HF)

Measuring pressure: 100mN, 600mN

Instrument size: 440ax190x470 mm (H x W x D)

Weight: 19 kg

Power supply: 115-230 VAC, 50/60 Hz
