    • Gauge Type 2088 Pressure Transmitter - China

    price: contact company for price

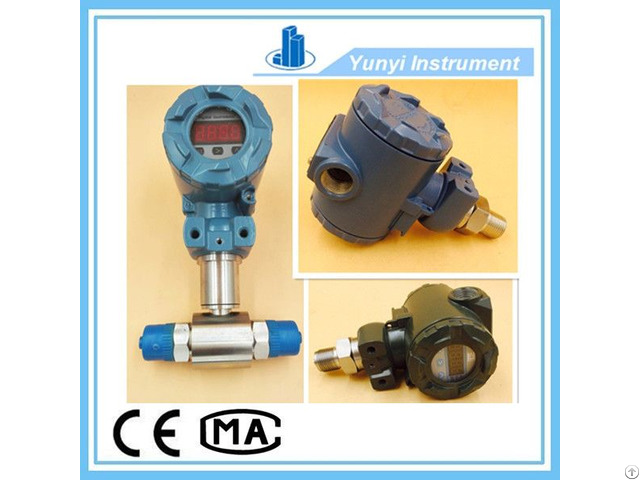

    Gauge Type 2088 Pressure Transmitter

    Products Photos Catalog Gauge 2088 Pressure Photos Catalog

    Pressure Transmitter Description :

    intelligent pressure transmitter combine measuring, display and transmitter together.

    It can correct the linearity and compensate temperature drift.

    It also can adjust the parameter of transmitter by hand-helder, achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication .

    With characteristics of high precision, good stability& reliability and easy handle.

    Features :

    Wide measurement range, Full stainless steel, various pressure port, High light LCD indicator

    HART protocol or RS485 protocol

    Marking: ExiaIICT6 Application

    Compatible with 316LSS, noncorrosive gases & liquids

    Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc.

    Specification

    Measurement Range

    -0.1.0~0.01.

    ~100MP a

    Proof pressure

    ≤1.5X rated pressure or 110MPa which ever is less

    Pressure type

    Gauge, absolute, sealed gauge

    Accuracy

    ±0.1% ±0.25%(Typical) Long term stability

    ±0.5%F.

    S/year

    Zero temperature Drift

    Span temperature Drift

    ±0.03%F.

    S/℃(≤100K Pa) ±0.02%F.

    S/℃(>100KPa )

    OperatingTemperatureRa nge

    -20℃~80℃

    Storage TemperatureRange

    -40℃~120℃

    Power supply

    24VDC(15~30)VDC

    Output signal

    Analog output: 4~20mA 0~10mA 1~5VDC 0~5VDC Digit output: HART protocol RS485 protocol digit signal output

    Pressure port

    M20×1.5 G1/2 or customize

    Display

    -1999~9999

    Housing material

    1Cr18Ni9Ti stainless steel

    Diaphragm material

    316L

    O-ring

    Fluororubber

    Cable

    polyethylene

    Insulation resistance

    100MΩ 100VDC

    Protection

    IP65


    Company Contact:


    • Phone: 00862988812007

    • Address: Room 1203B, Inland Port Mansion, No.9 Gangwu Road, Xi an International Trade & Logistics Park, X, Xi'an , Shaanxi , China

    • Email: Email

    Published date: March 3, 2017

    • Business Description: Professional manufacturer pressure transmitter, pressure gauges, pressure calibrator and deadweight tester.

      And we also develop valves, flow meter, temperature transmitter, level transmitter, densitometer etc.

      They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
