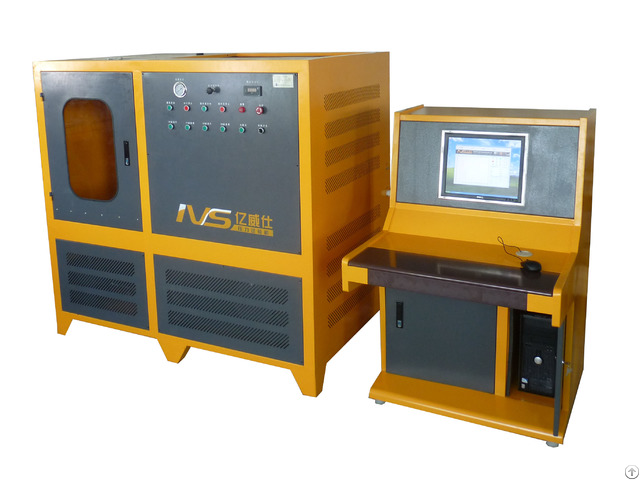

Impulse Cycling Test Stand - China

Introduction: IVS Impulse test stand is applied to performing the impulse/fatigue/life time test on pipeline, pressure vessel, shell, pump, fitting, heat exchanger, air-conditioner, filter, valve, adaptor, pressure gauge, sensor, transmitter, instrumentation and reactor etc.

Technical : 脉冲试验机|脉冲试 验台|脉冲测试设备 |脉冲检测装置-亿� �仕 Test pressure range: 0～100MPa; (adjutsable, higher pressure upon request) Test frequencyL: 0～2 Hz (max to 15HZ); Test medium: water, hydraulic oil, break oil, refrigerant, or other ; Test medium temperature: -40～150℃; Test environment temperature: -40～150℃; Test quantity: 1～6 pcs (more quantity upon request); Cycling times: ＞10, 000, 000 times; Test waveform: square wave, T wave, triangular wave, sine wave (selectable); Power supply: 380V-430V, 50/60Hz, 3PH; Control method: manual/auto.

Test standard: ISO, SAE Features: · Fully automated test stand with high speed data acquisition system.

· History screen and real-time display of pressure-time curves.

· Test data saved automatically when emergency or power down happens accidently.

· Multi-samples can be tested independently at a time.

· From the control theory to the quality, advanced electrical components guarantee high test precision and stability.

· IVS test software is programmable, stable and reliable.

· Automatic pressure maintaining reduced the working time of motor and pressurizing section, enhanced the stability, life time and pressure precision of whole testingsystem.

· Equipment features overpressure/overload protection.

· Auto stop testing when a rupture occurs, prevent the operators and equipment from damages to the utmost.

· Automatically drain the air off remained in the test specimen at the beginning of the test.

· Providing with various of fixtures to satisfy the connecting of hose and hose assemblies.

· Installing distance adjustable freely as per hoses'minimum bend radius and test standards.

· Impulse test with monflexing or without flexing.

*(Optional)

Company Contact:

• Posted By: Shenzhen IVS Flow Control Co., Ltd

• Phone: +86 0755-86069900

• Address: Bldg A, Yisong Industrial Park, No. 9, Jie Jiabao Rd, Shuitian, Shiyan, Shenzhen, China 518108 , Shenzhen , Guangdong , China

• Email:

• Website: https://www.ivsna.com

• Business Description: IVS Tester Corporation, founded in 1999, has been focusing on designing the manufacturing test equipments.

  Thanks to SC Hydraulic Engineering Co.

  and High Pressure Equipemnt Co, we had succesfully developped the Hydrostatic & Burst tester, Impulse tester, Leak detection tester, Volumetric Expansion Tester, etc.

  Our prefessional R & D team had made the ultimate tests on ultra pressure and finest precision possible for our heavy national industies including:

  Oil & Gas Industry:

  Hydraulic and Gas Leak test on Well control devices, Wellhead safety valve control panel;

  Automotive Industry:

  Various test stands on Brake hose, Fuel hose, Engine body, Muffler, Safety valves, high pressure pipes;

  Military Industry:

  Missile head cooling system, test stands on Valves and Instruments;

  Aerospace Industry:

  Various test stands on Aerospace hose, valves, and executor;

  Fire protection, Hose and Cylinder Industry:

  Hose tester, Cylinder tester, Impulse tester, Cyclic tester and etc.
