Pr2 Valve High And Low Temperature Pressure Testing System - China

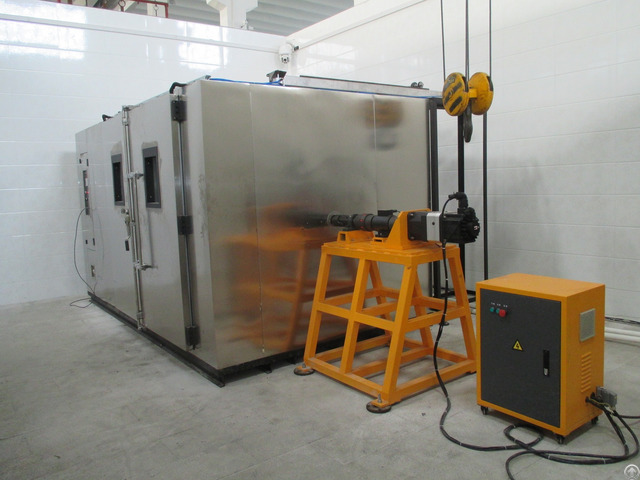

PR2 valve high and low temperature pressure testing system

System introduction:

High/Low temperature test system is mainly designed to perform high & low temperature performance test on PR2 valves and wellhead equipment, including: strength test, gas leak test, open/close dynamic test, torque test etc.

Technical details:

Test medium: N2, water

Test pressure: 0~140MPa.

Constant pressure range: 5%~100% FS.

Testing temp: -59℃-121℃ *(or on request).

Temp.

variation: ±2℃.

Pressure measuring accuracy: ±0.5% FS.

Pressure control precision: ±1% FS.

Torque measuring range: 200Nm~1500Nm *(or on request).

Drive air supply: 0.5MPa≤P≤1.0MPa.

Power supply: AC380V/50Hz.

Reference Standards:

API 6A, Spec 6A GB /T22513-2008 GB1059289
