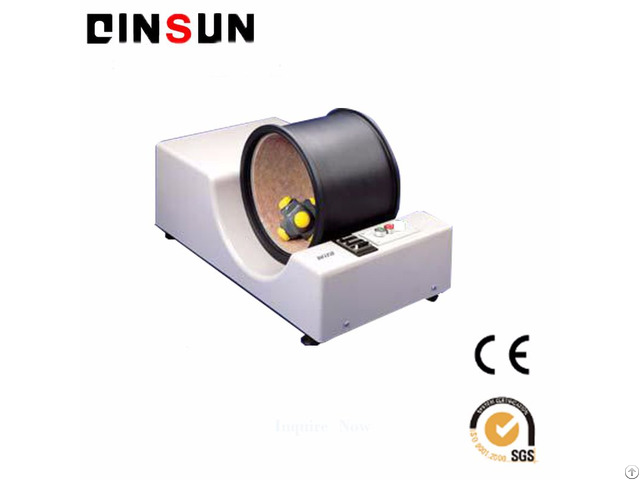

Qinsun Carpet Appearance Assessment Tester - China

The carpet appearance assessment tester is a popular apparatus used in the evaluation of the appearance retention of carpets.

Provides a rapid method of test - completion within one working day.

The drum uses a reversing mechanism to give more realistic pile disturbance, and the required number of revolutions may be preset on a revolution counter.

The 3.8kg tumbler has six polyurethane stud feet.

These six feet can be replaced If they are damaged, severe wear or after two-years’ application.

Technical Parameters

Items Parameters

Inner diameter 305mm±1mm

Wall thickness 8mm

Internal depth 200mm±1mm

Counting interval 0-999999

Nail number 6

Rotation speed 35±2r/min

Dimension 450mm(W)*420mm(H)*780mm(L )

Power supply 220AC, 50Hz

Weight 85Kg Total quality of polyurethane screw 3.8kg

Diameter of screw 40mm

Height of screw 15mm

Aspect of screw 15mm

Thickness of backing plate 3mm±0.25mm

Shore hardness of foot nails 85-100 Features

- Used in the evaluation of the appearance retention of carpets ；Barrel measurement with substrate;

Quick test, completion within one working day.

- It provide the realistic pile condition due to its reciprocating mechanism.

The number of rotations can be set in advance by a rotary counter.

-The 3.8kg tumbler has six polyurethane stud feet.

These six feet can be replaced If they are damaged, severe wear or after two-years’ application.
