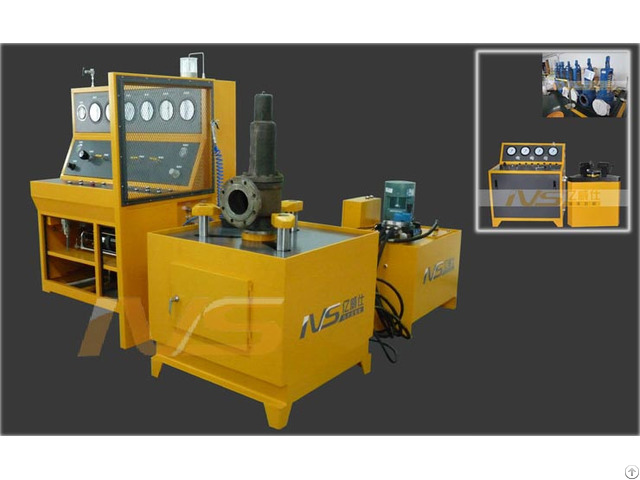

Safety Valve Calibration Stand - China

System Introduction: Safety valve calibration stand/safety relief valve test stand is designed for performance test on direct loaded or pilot operated safety valves, such as valves’set pressure, blow-down pressure, leakage and etc.

Technical Data: · Test pressure: 0-70MPa · Valve size: DN 10—DN600mm · Valve Tyep: flange or threaded · Test medium: Nitrogen, Air or Water (Optional) · Test port: 1port · Clamping Method: Hydraulic cylinder with 3claws station · Pressure precision: 0.4 class pressure gauge (Optional ) · Pressure Transducer: ±0.5% accuracy · Driven air: 6-8bar (workshop air) · Power supply: 380V AC, 50Hz (Optional) · Dimension: 1300×800×1200mm

Company Contact:

• Posted By: Shenzhen IVS Flow Control Co., Ltd

• Phone: +86 0755-86069900

• Address: Bldg A, Yisong Industrial Park, No. 9, Jie Jiabao Rd, Shuitian, Shiyan, Shenzhen, China 518108 , Shenzhen , Guangdong , China

• Email:

• Website: https://www.ivsna.com

• Business Description: IVS Tester Corporation, founded in 1999, has been focusing on designing the manufacturing test equipments.

  Thanks to SC Hydraulic Engineering Co.

  and High Pressure Equipemnt Co, we had succesfully developped the Hydrostatic & Burst tester, Impulse tester, Leak detection tester, Volumetric Expansion Tester, etc.

  Our prefessional R & D team had made the ultimate tests on ultra pressure and finest precision possible for our heavy national industies including:

  Oil & Gas Industry:

  Hydraulic and Gas Leak test on Well control devices, Wellhead safety valve control panel;

  Automotive Industry:

  Various test stands on Brake hose, Fuel hose, Engine body, Muffler, Safety valves, high pressure pipes;

  Military Industry:

  Missile head cooling system, test stands on Valves and Instruments;

  Aerospace Industry:

  Various test stands on Aerospace hose, valves, and executor;

  Fire protection, Hose and Cylinder Industry:

  Hose tester, Cylinder tester, Impulse tester, Cyclic tester and etc.
