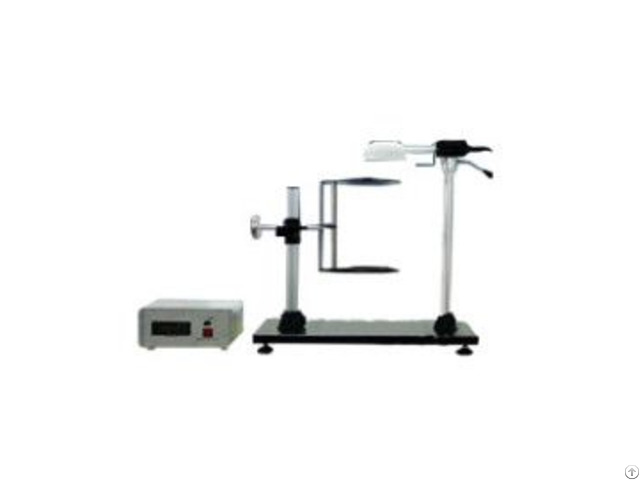

Thermal Radiation Droplet Tester - China

Thermal Radiation Droplet Tester, to determine the resistance to the thermal radiation through up a radiant heat source placed on the top of the sample to generate gas combustion, droplet, fiber combustion, etc.

thus the fire safety of automotive interior materials is determined.

Standards:

NF P 92-505, EU 95/28/EC, ECE R118 FEATURE:

Automotive interior materials droplet characteristic tester is according to appendix 7 of ECE R118 to determine the melting characteristics of materials.

With mechanical and electrical equipment control box body, cold plate with American equipment - Orange shaped paint surface treatment, body inside and outside resistance to acid and alkali resistance, long service life.

Specification:

1 - Sample holder: inner diameter of 118 mm stainless steel ring, inside diameter of 0.70 mm and a mesh diameter is 2.10mm into the stainless steel mesh .

Sample installation height can be adjusted

2 - Sample size: 70 x 70 (mm), the thickness is not more than 13mm

3 - Residue container: inner diameter 118mm, depth 12mm

4 - Radiant heat source power: 500W

5 - Heat radiation: diameter 100mm± 5mm transparent glass plate

6 - Radiator heat radiation 30KW/m2, up to 100KW/m2 Max;

7 - Radiator heat radiation linear adjustable; radiant heat is adjusted automatically by power control

8 - The radiation bracket can be rotated, the rotation angle is greater than 90 degrees, and the sample is convenient to be installed, and the radiation cone can move up and down.

9 - The distance from the sample shelf of the residue container: 300mm;

10 - Surface distance from the surface of the sample to the radiation source: 30mm

11 - Heat flux range: 10W/cm

12 - Size: 1120mm * 520mm * 1250mm (W*D*H), exhaust hole diameter 100mm

13 - All the tools are made of stainless steel, beautiful, corrosion resistance

14 - Power supply: AC220V, 50Hz, maximum power 1000W
