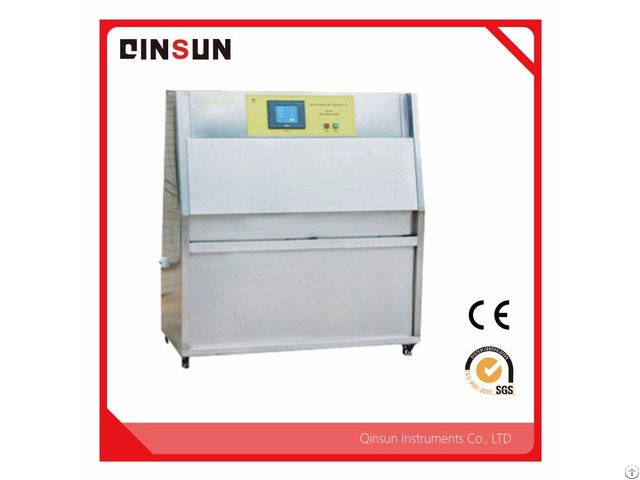

  • Uv Aging Testing Chamber - China

    price: 1.00 Dollar US$

    The UV aging test chamber is suitable for all kinds of geo-synthetics, such as light resistance, weather resistance and light ageing

    The exposure test of the sample was carried out in a fluorescent UV lamp vessel in a controlled environment.

    It can simulate and strengthen the environmental factors in the natural climate that are affected by light, heat, humidity, and rainfall as the main aging.

    It can simulate the accelerated test under long term exposure to obtain the results of the weather resistance of the material.

    Standard · JTG E50 T1164 The methods of geo-synthetics for highway engineering

    · GB/T 14522-93 Accelerated weathering test method for plastics, coatings and rubber materials used for machinery industrial products.

    · GB-T16422.3-1997 Plastics--Methods of exposure to laboratory light sources--Part 3: Fluorescent UV lamps

    · ISO4892-3: 1994 Plastics - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps Structures

    ·Main features: light, condensation, automatic cycle control, real-time monitoring and display

    ·Light temperature: RT + 10 ℃ ~ 70 ℃

    ·Condensation temperature: 50 ℃

    ·Condensation method: steam humidification condensation

    ·Temperature uniformity: ± 3 ℃

    ·Irradiation intensity: 0.55W / m2

    ·Light / condensation cycle: 0 ~ 9999h, 59min.

    It can be set (such as: 4H / 4H or 8H / 8H)

    ·Lamp center distance: 70mm

    ·Sample and lamp plane distance: 55mm

    ·UV lamp: UV-A340 or UV-B313 (optional)

    ·UV wavelength: (UVA) 315 ~ 400nm; (UVB) 280 ~ 315nm

    ·Lamp life: 1600 ~ 1800H

    ·Standard test piece: 75 × 150mm or customized according to customer requirements (it can be made for 21 samples)

    ·Control system: touch screen controller, real-time monitoring friendly interface, easy to use and easy to operate.

    ·Power supply: AC220V 50HZ 4.7KW Features

    Stable reliable and consistent

    · The structure of the test chamber is made of corrosion-resistant metal material, including 8 fluorescent UV lamp, water tray, test sample rack and touch screen controller.

    ·Lamp power is 40W and lamp length is 1200 mm.

    The working area of the test chamber is in the range of 900 × 210 mm.

    ·The lamp is installed in a row of four rows, installed in two rows, and the lamp is arranged in parallel, and the center distance of the lamp is 70 mm.

    ·The test sample is fixedly mounted at a distance of 50 mm from the nearest parallel surface of the lamp surface.

    The test specimen and its support form the inner wall of the box, and their backs are exposed to room temperature cooling air due to the temperature difference between the test sample and the air in the box.

    So that the test sample surface condensation phase to produce a stable condensation conditions, the test chamber shall be of natural air convection from the bottom of the box through the outer wall of the box and the test sample.

    ·The water vapor is produced by the low water pan of the heating box.

    The water depth is not more than 25mm, and the water supply automatic control.

    The water dish should be cleaned regularly to prevent the formation of scale.

    ·The temperature of the test chamber is measured by a sensor with a width of 75 mm, height of 100 mm and a thickness of 2.5 mm on a black aluminum plate (blackboard).

    The blackboard shall be placed in the central area of the exposure test.

    The measuring range of the thermometer shall be 30 to 80 ° C, The tolerance is ± 1 ° C.

    Control of the lighting and condensation stages should be carried out separately, and the condensation stage is controlled by the heated water temperature.

    ·Standard configuration: (1) 12 UV lamp; (2) 21 sets of sample rack


    Company Contact:


    • Phone: +862167800179

    • Address: No.258 Banting Road, Songjiang District Gu Dai Road, Shanghai, SHANGHIA , Shanghai , China

    • Email: Email


    Published date: January 11, 2018

    • Business Description: Qinsun Instruments Co., Ltd was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.

      Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.

      Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.

      Our Products:

      - multi finger scratch tester

      - electronic crockmeter rubbing fastness tester

      - double cylinder launder ometer

      - color fastness tester of textiles to perspiration

      - scorch sublimation tester for color fastness to heat
