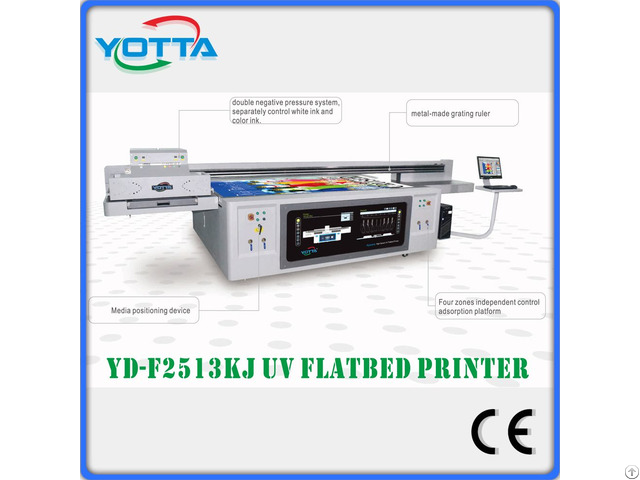

Uv Led 3d Ceramic Wood Glass Printer With High Speed - China

price: 60000.00 Dollar US$

Yotta digital uv printign machine adopts the highest speed printhead kyocera kj4a, the speed of the machine can reach 60sqm/h. kj4a-ta06atb-stdc inkjet printhead is
designed for high speed single-pass and
multi-pass appli ti ca ons with uv b d ase i kn .
it delivers 600 dpi×600 dpi resolution at
50 m/min by making use of 2, 656 nozzles
arranged across 108 mm width.
by employing wide print width, high density nozzle
arrangement and highly responsive ink channel
design, its productivity and stability are well
recognized in such fields as label printing, additional printing, coding and other industrial
applications. kyocera printhead parameter
ink type uv
dimensions (w × d × h) 200 ×25×59.3 mm
dry weight 420 g
total nozzles*1 2, 656
standard resolution 600 × 600 dpi
effective print width*2 108.25 mm
max. drive frequency 20 khz
max. print speed @ 600 dpi 846.7 mm/s (50.8 m/min)
drop volumes 6, 7, 11 and 14 pl
typical ink viscosity 6.0-7.0 mpa*s
input voltage 3.3 v for logic / 26 v for driving
temperature control reservoir heater and thermistor are equipped yotta choose kyocera kj4a printhead aimed at the high end market.
for more infomation about our machine, pls contact sara

Company Contact:

  • Phone: +86 13925228576

  • Address: Baohe Road, Longgang District, Shenzhen, Guangdong, China

  • Email: Email

Published date: March 22, 2017 -

  • Business Description: Shenzhen Yueda Printing Technology Co., Ltd is the leading manufacturer of uv flatbed printer, digital hybrid printer, textile printer, roll- to-roll printers in China. On the creteria of "Integrity, Quality, Service & Win-win", we insist to provide customers best quality printing machine with reasonable price. Welcome visiting us in Shenzhen City.
