Sell Automatic Disc Filters - China

price: contact company for price

EFR Series Automatic Disc Filter ( EFR filter for short) consists of

several standard disc filter units. EFR filter works automatically. The

EFR filter is the economic and reliable self- cleaning water filtration

solution. By controlling the patented back- flushing valves, EFR filter

back- flushes one filter unit with the filtrate from other units. All units are flushed one by one clean.

With several patented technologies, the EFR filter works much safer, more efficient and saves water when back- flushing. With new disc stack design without spring, it requires very working pressure ( 0.2Mpa) . The unique built- in duckbill valve ensures the maximum water flowing capacity during filtering and delivers high reverse flow check valve performance while back- flushing. It is easy to open the filter unit with self- locking buckle and specially designed seal ring. Every unit has the working indicator and vents automatically, which prevents water hammer damage and improves back- flushing performance. The EFR filter also has the special anti- corrosion design with good sea water chemical resistance.

Applicable Typical Industries and Liquids,

1) Applicable industries: water treatment systems, circulating cooling systems, steel, pulp and paper, mining, petrochemical, metal working, municipal facilities, etc.

2) Typical applicable liquid: groundwater, seawater, lake water, reservoir water, pond water, cooling water, child water, spraying water, injection water, heat exchanging water, seal water, bearing cooling water, well water, circulating process water, machining coolant, cleaning agent, cleaning water.

3) Filtration function: Remove large particles, pre- filtering, purify liquids, protect key equipment.

4) Filtration Type: Modular back- flushing filtration, automatic continuous on- line filtration.

Main Specification:

Number of Filter Unit: 3- 22

Filter Element: Plastic Disc Stack Screen

Ratings ( um) : 50/ 100/ 200

Filter Module Type: C type and K type

Filter Unit Material: reinforced plastic

Pipeline Material: 304/ 316L/ CS

Temperature: 60 degree

Design Pressure( MPa) : 0.8

Cleaning Start Mode: Time or Pressure Drop


Company Contact:


  • Phone: 862168173577

  • Address: Pudong New District, Shanghai, China

  • Email: Email


Published date: March 28, 2014 -

  • Business Description: Shanghai LIVIC Filtration System Co., Ltd. is the leading filtration company in China, focuses on the industrial precision filtration and self cleaning filtration market, provides the powerful and professional filtration support. LIVIC core team has over 10 years of experience in industry filtration and has the powerful capability in design, research and developing. We integrate global advanced filtration technologies and product resources and offer the one stop filtration solution.



    LIVIC has the complete filter product line, designs and manufactures products by carrying out the standard of high performance, high quality and high reliability. LIVIC has many world leading patented filtration technologies, which help customers obtain the profitable investment return and keep technology leading.

    LIVIC filtration products have been widely used in the industries such as petro chemical, fine chemical, water treatment, pulp and paper, auto industry, food and beverage, metal working, etc. by many leading industrial companies. LIVIC's excellent reputation, high performance filtration products and professional design capability and service win wide appreciation.

    LIVIC's marketing center and R&D center are located in Shanghai. We have two manufacturing bases, one in Pudong New District, Shanghai and another in Jingjiang, Jiangsu Province. LIVIC has passed the ISO9001:2008 certificate, comprehensively implements ISO90011 quality management system and the GB150 design, fabrication and inspection standard, produces filter equipments and precision elements according to the standardized process. LIVIC's marketing and service network cover whole China. We have agencies in Beijing, Guangzhou, Chengdu, Changchun and Xi'an and also agencies in Canada, Norway, Indonesia and India.

    Selecting LIVIC brand means selecting the trustworthy long term filtration partner and getting the high quality filtration products and the professional filtration service.

Related listings



  • Sell Automatic Bernoulli Self Cleaning Filter
    Sell Automatic Bernoulli Self Cleaning Filter
    Filters - Shanghai Livic Filtration System Co., Ltd - China - March 28, 2014 - contact company for price

    The AF series Automatic Bernoulli Self- cleaning Filter is designed for continuous filtration of water in pressurized systems. AF Bernoulli Filter removes debris and particles from natural water sources such as sea water or river water. The AF filter...

  • Sell Industrial Cartridge Filters
    Sell Industrial Cartridge Filters
    Filters - Shanghai Livic Filtration System Co., Ltd - China - March 28, 2014 - contact company for price

    CF Series Cartridge Filter ( CF Filter for short) , with filter cartridges as filter elements, is capable of liquid precision filtration. It can remove tiny impurities and bacterium. CF filter has the advantages of high filtration rating and high dir...

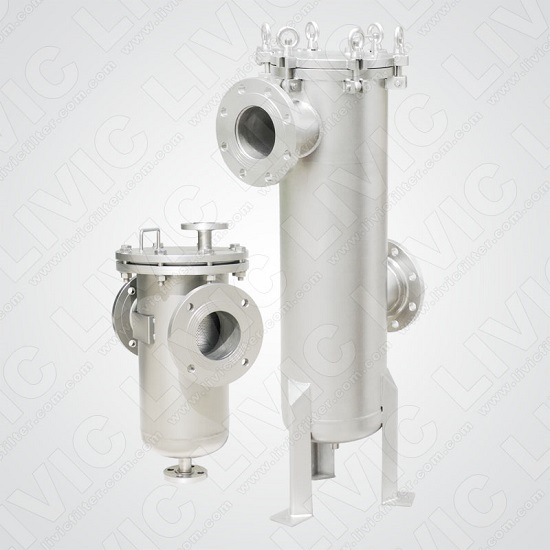

  • Supply Basket Filtration System With Filter
