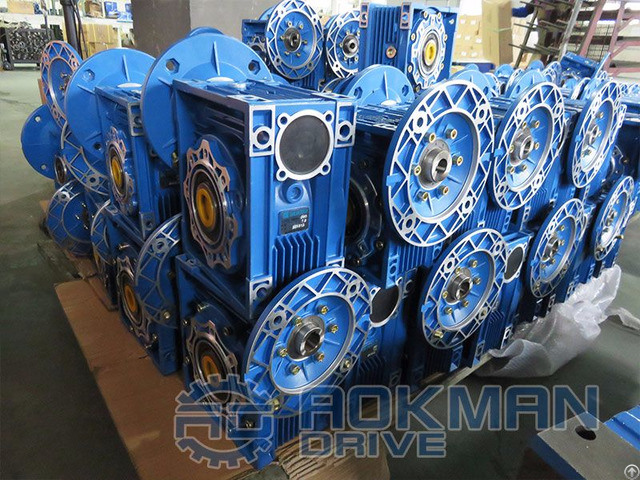

Aokman Nmrv Nrv Worm Gearbox Gearmotors - China

Components:

1 - Housing: Die-cast Aluminium Alloy Gearbox (RV025~RV090)

Cast Iron Gearbox (RV110~RV150)

2 - Worm Wheel: Wearable Tin Bronze Alloy, Aluminum Bronze Alloy

3 - Worm Shaft: 20Cr Steel, carburizing, quenching, grinding, surface hardness 56-62HRC, 0.3-0.5mm remaining carburized layer after precise grinding

4 - Input Configurations:

Equipped with Electric Motors (AC Motor, Brake Motor, DC Motor, Servo Motor)

IEC-normalized Motor Flange (NMRV)

Solid Shaft Input (NRV)

Worm Shaft Tail Extension Input

5 - Output Configurations:

Keyed Hollow Shaft Output

Hollow Shaft with Output Flange

Plug-in Solid Shaft Output

6 - Spare Parts: Worm Shaft Tail Extension, Single Output Shaft, Double Output Shaft, Output Flange, Torque Arm, Dust Cover

7 - Gearbox Painting:

Aluminium Alloy Gearbox:

After Shot Blasting, Anticorrosion Treatment and Phosphating, Paint with the Color of RAL 5010 Gentian Blue or RAL 7035 Light Grey

Cast Iron Gearbox:

After Painting with Red Antirust Paint, Paint with the Color of RAL 5010 Gentian Blue

Models:

NMRV – Hollow Shaft Input with IEC-normalized Motor Flange

NMRV025~NMRV150

NRV – Solid Shaft Input

NRV025~NRV150

Features:

1 - Quality aluminum alloy gear box, light weight and not rust

2 - 2 optional worm wheel materials: Tin bronze or aluminum bronze alloy

3 - Standard parts and very flexible for shaft configurations and motor flange interface

4 - Several optional mounting options

5 - Low noise, High efficiency in heat dissipation
