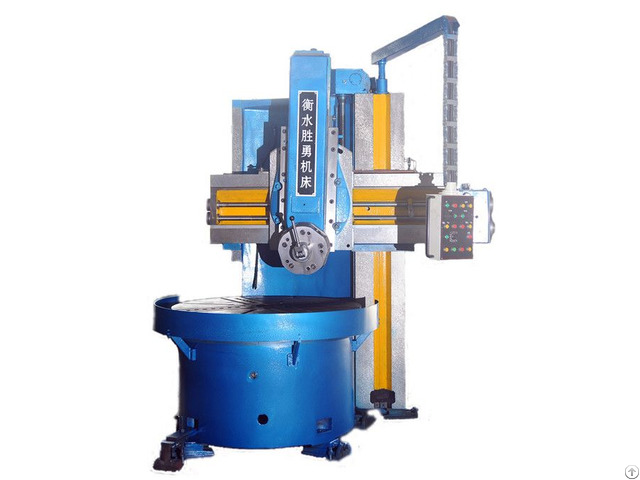

Economical Cnc Metal Vertical Lathes For Sale - China
price: 90000.00 Dollar US$
Technical specification of Economical cnc metal vertical lathes for sale C5118
1 Table diameter 1400 mm
2 Maximum turning diameter 1800 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 5 t
5 Speed change of table 5-160 r/min
6 Working table Step of rotation speed 16
7 Feed rates 0.8-86 mm/min
8 Step 12 step
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 900 mm
11 Crossrail travel 650 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Machine weight 17.5 t
16 Overall dimensions(L×W×H) 2900×2900×3800 mm
Company Contact:
- Phone: 0086-18330891102
- Address: No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County,, Hengshui City, Hebei Province, China
- Email:
Published date: October 11, 2016
- Business Description: Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: CNC lathe , Vertical lathe , vertical turning lathe, vertical turret lathe, Heavy duty horizontal lathe machine, Gantry milling machine, plano miller, boring milling machine and roll turning lathe etc.
If interested, feel free to contact us
