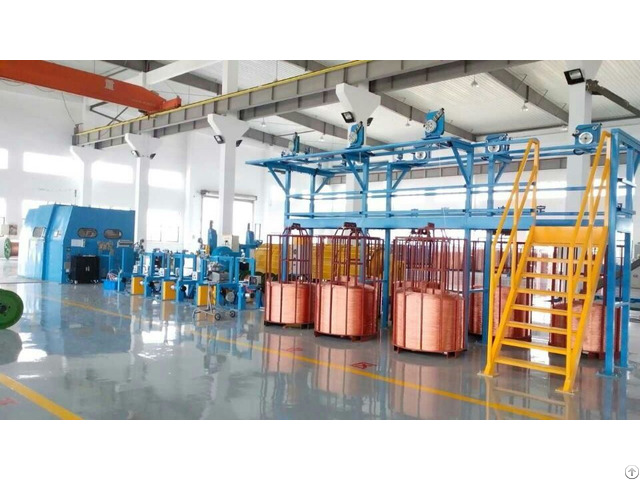

Fc 1000b High Speed Bunching Machine - China
price: 46250.00 Dollar US$
Main performance parameters of FC-1000B high speed bunching machine
1 - Usage: It is applied to double twisting of core wires
2 - Outer diameter of single core wire/bare copper wire: core wire: φ0.16~φ1.04mm/bare copper wire : φ0.30~φ2.14mm
3 - Outer diameter of strand core wires: φ3.0~φ10mm/ Outer diameter of strand copper wires: φ2.0~φ6.5mm
Cross section area 2.0-25 mm²
4 - Take-up Bobbin Size: PN1000
5 - Maximum rotating speed for Bow: 800RPM (1600twist)
6 - Type of traverse: φ50mm rolling ring traverse, winding pitch and breadth are adjustable.
7 - Pitch range(mm): 35~154mm(According to the requirement of customer)
8 - Main motor: 18.5KW AC motor +frequency converter
9 - Weight of copper load: about 1000kg
10 - Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
11 - Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.
12 - Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension, constant tension.
13 - Drive bearing: it is adopted imported Japan bearing.
14 - Synchronization strap: it is adopted imported American product.
15 - Spool from top to bottom: it is adopted manual pump hydraulic landing.
16 - Way of spindle lubrication: butter lubrication.
17 - Index of noise: Below 80dB
18 - Dimension: (length×breadth×height) : 4200×2500×2300
19 - Weight: 6000Kg
20 - Coating: Sky blue (may according to customer’s requirements).
21 - Package: simple waterproof packing
22 - Direction: this machine is on your left, when you are in the face of front door, and pay-off on your right (may according to customer’s requirements to make).
23 - Sealing of machinery door: seal of plastic.
24 - Spindle housings sealing: mechanical block oil ring
Company Contact:
- Phone: +8615806265585
- Address: No18.Leigongjing road,huaqiao town, kunshan city, Jiangsu , China
- Email:
- Website: https://www.wirebunchingmachine.com
Published date: August 2, 2016
- Business Description: Mainly produce wire bunching machine, wire extrusion machine, wire annealing tinning machine and so on for 15years.
