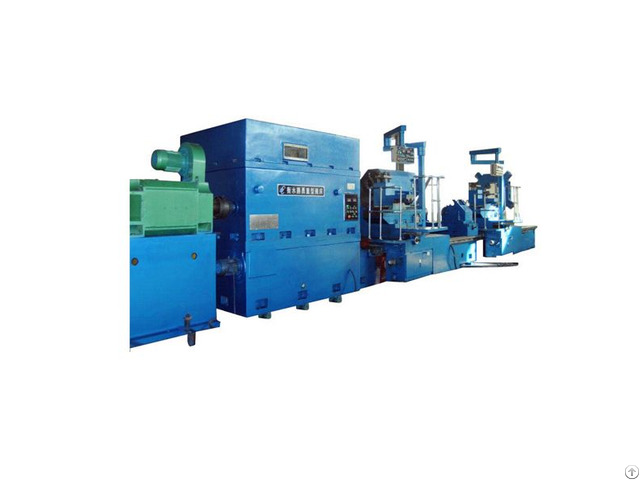

Large Diameter Cnc Parallel Lathe Machine - China
price: 90000.00 Dollar US$
Technical specification of CNC parallel lathe machine CW61125
1 Maximum swivel diameter on the bed 1250 mm
2 Maximum turning diameter over carriage 900 mm
3 Maximum length of workpiece 60dm
4 Maximum weight between center 18t
5 Diameter of faceplate 1250mm
6 Maximum torque of faceplate 63KN.
m
7 Range of spindle speeds 1-200r/min
8 Maximum cutting force of carriage 71KN
9 Total cutting force 100KN
10 Range of feed rates ( long) 0.1-40 mm/min
11 Range of feed rates(Trans ) 0.05-20 mm/min
12 Range of feed rates(longitudinal) 0.025-10 mm/min
13 Rapid speed of of carriage( long) 3000 mm/min
14 Rapid speed of of carriage( Trans) 1500 mm/min
15 Range of Processing screw (metric) 1-60 mm
16 Range of Processing screw(imperial system) 6-1/2(t/in)
17 Module (No) 1~6
18 Dimensions of close mode steady supporting Φ300-600 mm
19 Dimensions of open mode steady supporting Φ450-900mm
20 Scale of tool bar section 60×60mm
21 Power of main motor DC: 55KW
22 Machine weight(Approx) 26/30/36/39T
23 Overall dimensions(L×W×H) 1138×236×209cm
Company Contact:
- Phone: 0086-18330891102
- Address: No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County,, Hengshui City, Hebei Province, China
- Email:
Published date: October 11, 2016
- Business Description: Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: CNC lathe , Vertical lathe , vertical turning lathe, vertical turret lathe, Heavy duty horizontal lathe machine, Gantry milling machine, plano miller, boring milling machine and roll turning lathe etc.
If interested, feel free to contact us
