Turning Tool Induction Welding Machine - Chinaprice: contact company for price
Model WH- VI- 16
Work Powersingle phrase 220V/ 50- 60Hz
Working Voltage Range 180V- 250V
Max Input Current 42A
Max output power16KW
Oscillation Frequency 10- 80KHZ
Host Weight 20kgÂ±5% kg
Host Size 500* 240* 450
Cooling Water Pressure 0.1mpa
Temperature Protection 50â„ƒ
Applications of turning tool induction welding machine:
1, Turning tool induction welding machine applies to heat treatment:
All kinds of hardware tools, electric, hydraulic, pneumatic components, air distribution and other mechanical metal parts Motorcycle surface, bore, in part or in whole quenching, annealing and tempering. Such as hammers, knives, scissors, pliers and various types of shafts, cams, sprockets, gears, valves, ball pin and large machine tools and other hardening guides and ductile iron, many domestic manufacturers of machine tool guide sprocket and have been heat treatment using our equipment.
2, Turning tool induction welding machine applies to brazing:
Various types of carbide blades, turning, milling, planer, reamer, diamond saw blade, saw welding. Grinding, drilling, cutting welding. Other hybrid welding of metallic materials. Such as brass, copper parts, valves, stainless steel pot and so on.
3, Turning tool induction welding machine applies to metal smelting:
Such as melting gold, silver and copper.
4, the other heated areas
Aluminum tube. Cable, wire heating film. Food, beverage, pharmaceutical industry to use aluminum foil, preheat the metal expansion and so on.
Features of turning tool induction welding machine:
1. Digital Lock: Using digital phase- locked frequency automatic tracking technology that can automatically adapt to a variety of sensors.
2. Modular design: The driver module controls to ensure equipment reliability and easy maintenance.
3. Resonant frequency technology: The resonant frequency technology the overall efficiency of the device e 90% , high efficiency, energy saving, power consumption is only tube induction heating equipment for 20% - 30% .
4. Solid State: the use of IGBT inverter devices, high frequency, small size and light weight.
5. Stupid design: easy to install, no need to debug, easy to use.
6. Safe and reliable: no million- volt high- pressure equipment, safe operation, can work continuously for 24 hours.
If you need our products, please contact:
w w w. metal- inductionheating. c o m
i n d u c t o h e a ti n g @ g m a i l. c o m
86- 371- 60983870
- Phone: 8615538376386
- Address: No.68 Jingnansi Road,Chase inductrial park, Econom, China, China
Published date: October 12, 2015 -
- Business Description: Zhengzhou Gou's Electromagnetic Induction Heating Equipment Co. Ltd is one of the most professional and trustful manufacturer and exporter in china. We own the excellent team and advanced tech, we product hundreds of device and export to all over the world. We mainly product induction heating machine, induction brazing machine, induction hardening machine, CNC hardening machine tool, induction heating furnace, induction melting furnace and other supporting parts. From the foundation, we have exported to Korea, America, Brazil, Mexico, south Africa, Russia, etc. we always provide the best products with reasonable price, choose us will be your advisable decision.
For Sale Used Test Equipment Spectrum Analyzer Agilent E4440aGeneral Equipment / Machinery - CTC Technologies Ltd - China - October 10, 2015 - contact company for price
For Sale: Used Test Equipment Spectrum Analyzer Agilent E4440A Agilent Technologies E4440A PSA Spectrum Analyzer 3 Hz - 26.5 GHz The Agilent Technologies E4440A spectrum analyzer is a wide band, very sensitive receiver. It works on the principle of '...
0 5m 1 0m Inspection ConveyorGeneral Equipment / Machinery - Shenzhen long star new power automation equipment - China - October 7, 2015 - contact company for price
1. PLC Program control. 2. Heavy bottom design to prevent shifting. 3. Inspect / Auto Mode. 4. PCB Precise stopping in position. 5. Anti PCB stuck track design. 6. SMEMA compatible. Option: Conveyor can be customize according to requirement. such as ...

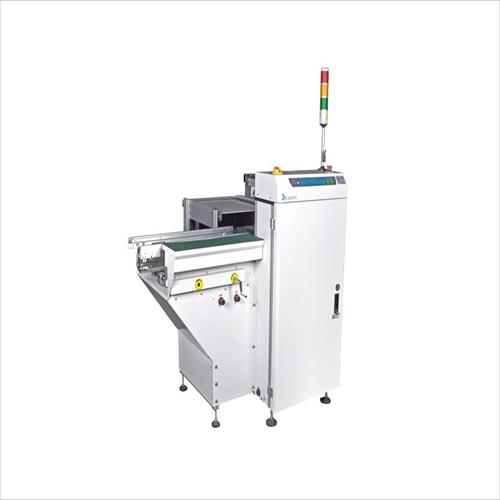

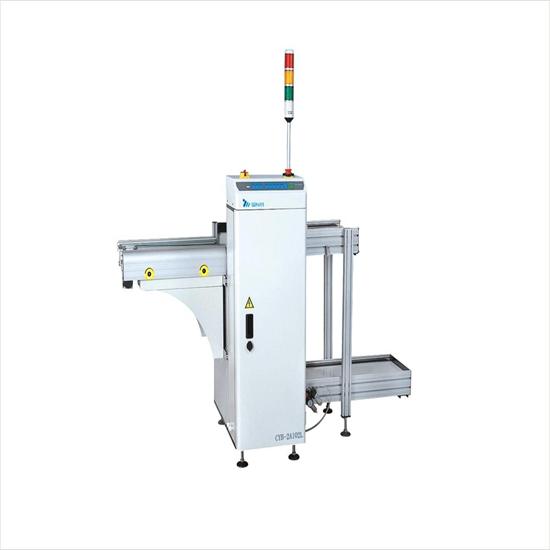

Introduction Of Magazine LoaderGeneral Equipment / Machinery - Shenzhen long star new power automation equipment - China - October 7, 2015 - contact company for price
