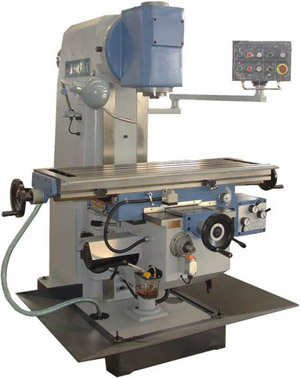

Cnc Milling Machine Center - Chinaprice: contact company for price
Table size 250 × 800 mm
Longitudinal travel 400 mm
Cross travel 300 mm
Vertical travel 400 mm
Spindle motor 2.2KW
Speed range 4500(6000) r/min
Spindle taper NT30(BT30)
Spindle nose to table surface 105-500 mm
Spindle center to column surface 320 mm
Positioning accuracy 0.02 mm
Repeatability 0.01 mm
Net weight 1500(2300) KG
Overall dimensions 1700(2000)×1600(1800)×2260 mm
- Posted By: manufacture and export
- Phone: 866323825098
- Address: No.5 Donghai Road Zaozhuang Economic Development Z, Zaozhuang, China
- Website: http://www.makemachinetools.com
Published date: October 29, 2013 -
- Business Description: Located at Zaozhuang city Shandong province, Zaozhuang Make Group has
been focusing on manufacturing machine tools for decades. It consists of
Zaozhuang Longda Heavy Machine Tool Co., Ltd., Zaozhuang Link Machinery
Co., Ltd., Zaozhuang Longteng Machine Tool Co., Ltd, etc.
The main products include machine tools like Plano Miller/Plano Milling Machine/Gantry Milling Machine/Planer Milling machine, Conventional Milling Machine & Milling/Drilling Machine, Vertical Lathe, Horizontal Lathe, Radial Drilling Machine, Vertical Drilling Machine, Gear Shaper & Hydraulic Shaper, Press, Shearing Machine, Press Brake, Saw Machine, Riveting Machine, Air Hammer, etc; Accessories like Vice, Angle Clamp, Slotting Head, DRO, Dividing Head, Rotary Table, Grinding wheel balancer, Universal Boring Head, Clamp kits, etc. And the other product range is garage equipments like Cylinder(Blocks) Boring Machine/Fine Boring Machine, Cylinder Honing Machine, Brake Drum Boring Machine, Brake Lathe/Brake Drum(Disc) Cutting Machine, etc.
All of them have adopted modernized ISO Quality Management System, sound operational procedures as well as effective service system. All the commodities are carefully produced and we bear in mind that products with consistent good quality are crucial to the ongoing success of your operations.
With our extensive application knowledge we can try our best to satisfy customers most exacting need. If you are seeking normal standard commodities or special items to meet your own specifications, we guarantee to supply the products you require at prices that may satisfy you.
Spinning Riveting MachineHeavy Equipment - Mining - manufacture and export - China - October 29, 2013 - contact company for price
XM series riveting machine is a new style equipment developed according to the principle of cold roll. It is with features like low forming pressure of rivet which is only 1/10 of riveting punch, work-piece has no adverse deformation, high smooth fin...
Hydraulic Cold Riveting MachineHeavy Equipment - Mining - manufacture and export - China - October 29, 2013 - contact company for price
Main Specifications YM-100T YM-130T YM-150T YM-200T Nominal Pressure Kn 1000 1300 1500 2000 Hydraulic Pressure Mpa 31.5 31.5 31.5 25 Dis. between Pressing head & Table mm 470-710 470-710 470-710 480-720 Effective Table Size mm 550*620 550*620 550*620...
Planer Milling MachineHeavy Equipment - Mining - manufacture and export - China - October 29, 2013 - contact company for price
Main transmission adopts SRD or servo system, wide range of step-less speed change of table's movement satisfies the requirements of planning/milling/grinding at different speed, independent spindle feeding box enables more balanced feeding to proces...
