Raymond Mill Device Usage - Chinaprice: contact company for price
crushed materials are transferred to a hopper by the elevator , fed
uniformly.quantltatively and continously by the vibration feeder to the
grinding chamber of the main frame for grinding.the grinded particles
are brought up by the air current of the blower into the classifier for
classification.the particles with the required fineness are brought up
by the air current through the pipe into a collector for separation and
collection, the finished particles are discharged from a pipe
outlet, Because of some moisture contained in the materials to be
grinded, the heat resulting from grinding leads to the vaporized air
which changes the airflow volume, Moreover, the outside air inhaled from
the narrow gaps of the piping connections can increase the volume of air
current.Therefore, it is necessary to adjust redundant air pipe between
the blower and the main unit for keeping the balance of the air
current.Then the redundant air is quided into a cloth bag of a dust
cleaner to collect the fine power in the air, Finally, the redundant air
is discharged after purfication.

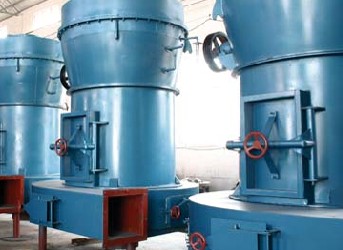

Raymond mill consists of main frame, duct fan, analyzer, cyclone powder collection device, bag duct collector and pipe connection.we will provide the elevator, bunker, electrical cabinet, feeder, crusherand so on. to meet clients’ requirements.
Features and benefites
In the micro-powder grinding room, the rollers hanged on the roller lifting frame, which is fixed with the main sheft and the scraper knife.the pressure spring press on the outer of the cantilever by tension rod, with the corss arm sheft as the pporting point. let roller tightly press on the inner surface of the ring.when the motor moved with equipment, the scraper knife on the scraper frame moved with the roller at the same time.as the roller moved on the inner sphere surface and moved itself.analyzer let the analyzer runner rotated by motor equipments, and the powder fineness depend on the speed adjustment of the analyzer.
Raymond Mill Device Usage
