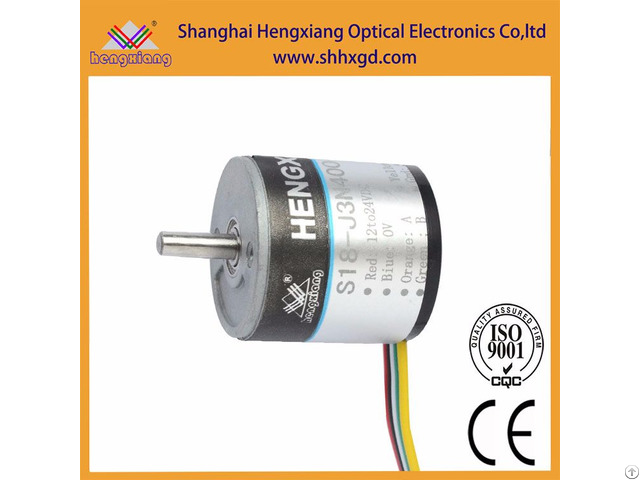

Hengxiang Miniature Solid Encoder With Diameter 18mm Shaft 2 5mm Used In Robot - China
price: 30.00 Dollar US$
1) Advantages 1, Certification: CE& ISO9001 & SGS.
2, Feature: microminiature, logical compact configuration and easy to install.
3, Application: subminiature motor, small instrument, etc., for automation control S18- Series Encoder Specification Brand: HENGXIANG
External dimensions: External diameter: 18mm
Thickness: 18mm
Shaft diameter: 2.5mm
Resolution: 36;50;60;10 0;200;250;256;360;400;500 ;1000;800;1600
Output phase: Phase A, B, Z Supply voltage: DC5V & DC12-24V
Outlettype: Cable out from side
Output mode: Collector open circuit output(NPN &PNP)
Environmental temperature: Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity : Operating and storage: 35~85%RH (non-condensing) Protection grade: IP40
Cable length: 150mm (cable length could be added ) Shell: Aluminium
Package: Carton box
Net weight: About 20g (with package)
Certification: CE
Company Contact:
- Posted By: HENGXIANG encoder factory
- Phone: 021-54613487-8019
- Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang,Shanghai, songjiang , Shanghai , China
- Email:
- Website: https://www.shhxgd.com
Published date: May 21, 2017
- Business Description: Hengxiang encoder factory,
Which can offer solid shaft, hollow shaft, incremental encoder, absolute encoder, quasi-sinusoidal encoder, etc.
Revolution can up to 48000ppr.
Max motor speed 24000rpm.
