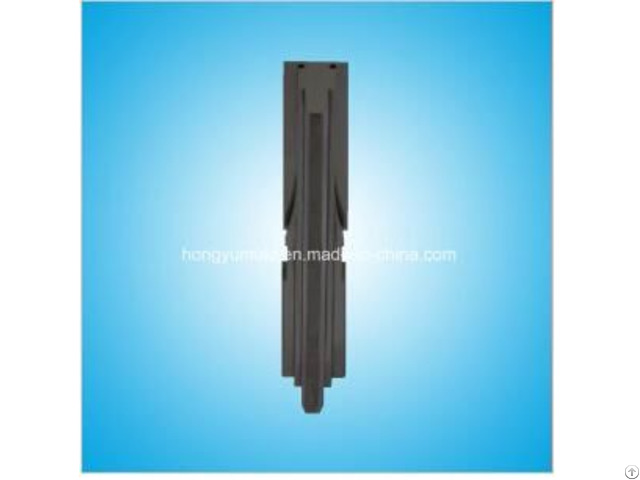

Tungsten Carbide Stamping Die Parts For Selling - China

price: 80.00 Dollar US$

Type: Cold Stamping
Material: Tungsten Carbide
Surface Processing: Hip
Process: Separation Process
Tolerances: 0.002mm
Size: 3mm*6mm*40mm
Cutting Length: 8mm
Origin: Dongguan China
Processing Type: Shaping Metal
Mould: Multistep Progressive Dies
Fine Blanking: Open
Industry: Metal Stamping Parts
Customized: Non-Customized
Life Time: 3 Years
Specification: Non-Standard, Standard, 3mm*6mm*40mm.
The cutting length area with mirror surface, the surface roughness is around Ra0.03, tolearnce can be controlled in ±0.002mm. Grind cutting area only, without any hand polishing.

Special Introductions:

Material: RD30(Carbide)
Processing Machine: Surface grinder, Profile Grinder
Outside contour Tol.: ±0.001mm
Profile Tol.: ±0.002mm
Measuring instruments: Projector, Toolmaker Microscope
Design: non-standard parts, according to customer's request
Quotation: We will quote in tow hours once we receive inquiries
Delivery Time: 2days.
Environments:

1.Processing Environment:

Whole production department with stable temperature around 21ºC to keep the accuracy of machines.




2.QC Environment:

Whole QC department keep the same temperature 21ºC to make sure the parts in shape.

Materials:

We import various kinds of grade carbide to meet worldwide customers' demand.:




Application fields of carbide:

Ultrafine grades: grain size 0.2-0.5um, thanks to their high transverse rupture strength these grades are particularly suitable for stamping thin sheet metal and foils with extremely thin-walled punches.

Submicron grades: grain size 0.5-0.8um, For difficult abrasive materials and wherever there is a tendency for galling; Excellent wear resistance;

Fine/Medium grades: grain size 1.3-2.5um, the standard grades for blanking and stamping tools; Ideal compromise between wear resistance and tracture toughness with very good edge stability.


Company Contact:


  • Phone: +86-13412001563

  • Address: No.,126 XINMA ROAD XINMALIAN VILLAGE, DONGGUAN, GUANGDONG, China

  • Email: Email


Published date: July 21, 2016 - Modified date: August 10, 2016

  • Business Description: stamping die/punch/wire cutting products/stamping punch/spare parts/tungsten carbide punch.
    Scope of business: Stamping molding assembly, tungsten carbide tooling, CNC profile grinding, CNC wire cutting, ceramics molding components, carbide punches, pins & bushes, profile grinding of mirror surface.
