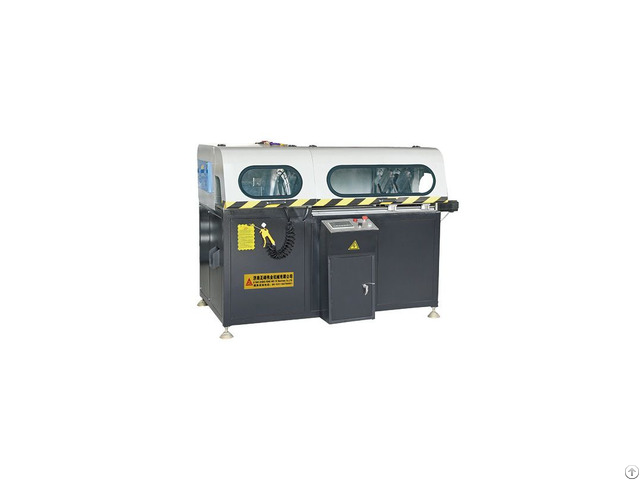

Cnc Connecter Automatic Cutting Saw For Aluminum Win Door - China

price: 2800.00 Dollar US$

1.It has features of easy operation, reliable performance, advanced technique and convenient maintenance etc
2.Used for connector of aluminum profile cutting, and for plastic profile cutting
3.Imported cabide saw blade give accurate processing and high endurance
4.Linear bearing motion pair gave less resistance force and ensured high processing accuracy
5.Suitable for larege volume production
6.Clamping and feeding process adopt pneumatic control, it has features of high automation, reliability and production efficiency.

Technical Parameters
1. Power supply 380V 50HZ
2. Cutting motor power 3.0kw
3. Operation air pressure 0.5-0.8MPA
4. Motor rotary speed 3850r/min
5.Blade specification Ø500mm*Ø30mm*4.4mm Z=100
6. Cutting range 135*300mm
7. Cutting angle 90°
8. Overall dimension 1700*1400*1500mm(Support stand 3000mm)


Company Contact:


  • Phone: +86-531-88796991

  • Address: No 104, Daqiao Town, Jinan City, Shandong, China

  • Email: Email


Published date: July 27, 2016 -

  • Business Description: Jinan Zhengfeng Weiye Machinery Co., Ltd is a professional equipment manufactures of insulating glass equipment and aluminum PVC doors and windows. The company combined to research and development, production ,sales and service , has experienced experts and fully function mechanical processing capacity.
