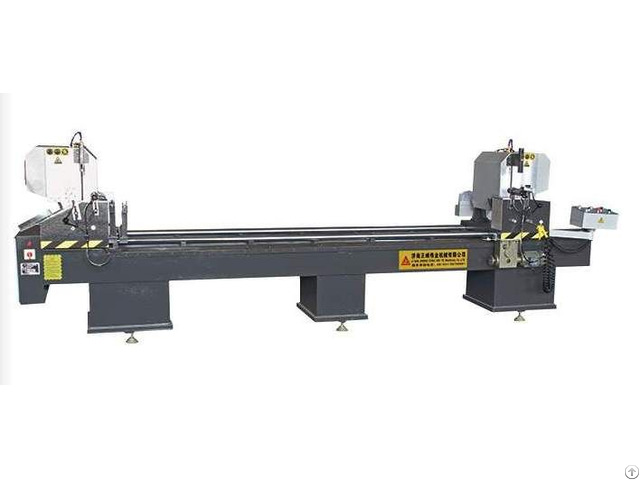

Cnc Double Head Cutting Saw For Pvc Door And Window - China

price: 4000.00 Dollar US$

1)Used for the double-head cutting of alumium profiles in the angle of
2)Imported linear guide pair with high accuracy
3)The CNC technology can cut different standards profiles automatically
4)Specialized hard alloy saw blades enable to guarantee the quality of the cutting surface and its durable extent
5)High precision spindle can make the asw bit move smoothly
6)Tow saw heads can work individually as well as simultaneously
7)Auto-induction middle profile support and following profile supporter the loading and clamping convenient
8)With over feeding function
9)Cutting angle allowance ±5’
10)Cutting profile surface planeness ≤0.05mm ≦
1)Cutting profile surface roughness RA12.5UM

Technical parameters
2. Input 2*1.5kw
3.Power supply 380V/50HZ
4. Air pressure 0.5-0.8mpa
5.Motor rotary speed 3100r/min
6. Saw blade specification Ø450* Ø30
7. Cutting length Min 400mm Max 3800mm
8.Cutting angle 45°~90°
9.Overall dimension 4500*1100*1600mm


Company Contact:


  • Phone: +86-531-88796991

  • Address: No 104, Daqiao Town, Jinan City, Shandong, China

  • Email: Email


Published date: July 27, 2016 -

  • Business Description: Jinan Zhengfeng Weiye Machinery Co., Ltd is a professional equipment manufactures of insulating glass equipment and aluminum PVC doors and windows. The company combined to research and development, production ,sales and service , has experienced experts and fully function mechanical processing capacity.
