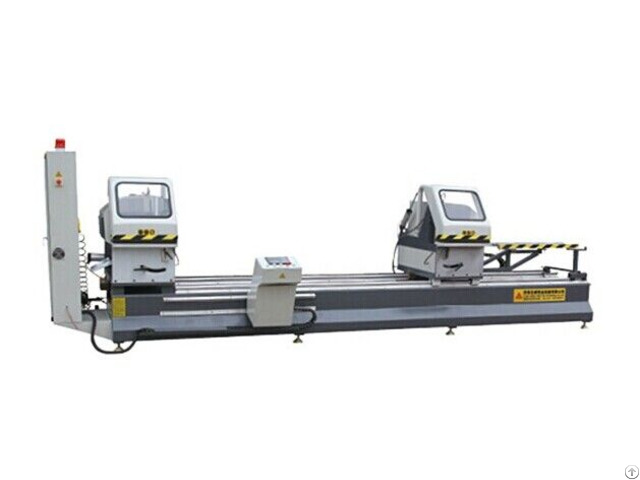

Cnc Double Head Saw For Aluminum Profiles - China

price: 6000.00 Dollar US$

Main Features

1)The saw machine is used for cutting alu-ally and curtain wall profiles
2)It features large cutting range, hi efficiency and perfect safe guards, it is suitable for large scale production
3)The CNC technology can cut different standards profiles automatically
4)The structure is strong and excellent rigidity and reliability, so it is impossible to be out of shape
5)The main shaft with hi-precision makes the saw operating stable and cutting surface smooth.
6)The imported guide rails and the linear motion pair can realize high precison and accurate location
7)The heads return automaticallya
8)The two-way location and clamping features high precision and steadiness
9)The well-sealed safeguard of sawblade prevents the cutting bits from flowing everywhere.
10)With over feeding function

Technical parameters
Power supply 380V 50HZ
Motor power 2*2.2kw
Cutting motor rotary speed 3100r/min
Operation air pressure 0.5-0.8mpa
Blade specification Ø500mm*4.4mm* Ø30mm Z=120
Cutting length max 4200xx min 400mm
Cutting width/height135*300mm(90°) 135*200mm(45°)
Cutting angle: 90°45°67.5°
Dimension 5800*1200*1600mm


Company Contact:


  • Phone: +86-531-88796991

  • Address: No 104, Daqiao Town, Jinan City, Shandong, China

  • Email: Email


Published date: July 27, 2016 -

  • Business Description: Jinan Zhengfeng Weiye Machinery Co., Ltd is a professional equipment manufactures of insulating glass equipment and aluminum PVC doors and windows. The company combined to research and development, production ,sales and service , has experienced experts and fully function mechanical processing capacity.
