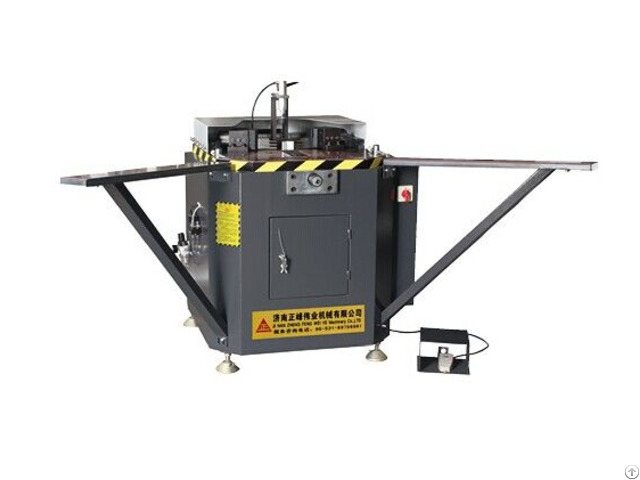

Corner Crimping Machine For Aluminum Window And Door - Chinaprice: 1500.00 Dollar US$
1.Put the corner key into the 45° aluminum alloy window profile, move the bump fork squeeze the two window profiles tightly to make a firm 90° angle. You can adjust the machine to single-side-dour point bump according to the characteristic of the corner key
2.Because of enlarging the size and the bump power, it is an ideal choice for the angle forming of thermal-break doors, window profiles and extremely thick curtain wall materials.
1.Power supply 380V/50HZ
2.Motor power 2.2kw
3. Motor rotational speed 1400r/min
4. Profile processing height 120mm
5.Profile processing width 90mm
6. Air consumption pressure 0.5-0.8mpa
7. Overall dimension 2300*1200*1300mm
- Posted By: Jinan Zhengfeng Weiye Machinery Co., Ltd
- Phone: +86-531-88796991
- Address: No 104, Daqiao Town, Jinan City, Shandong, China
- Website: http://www.sdzhengfeng.com
Published date: July 27, 2016 -
- Business Description: Jinan Zhengfeng Weiye Machinery Co., Ltd is a professional equipment manufactures of insulating glass equipment and aluminum PVC doors and windows. The company combined to research and development, production ,sales and service , has experienced experts and fully function mechanical processing capacity.
