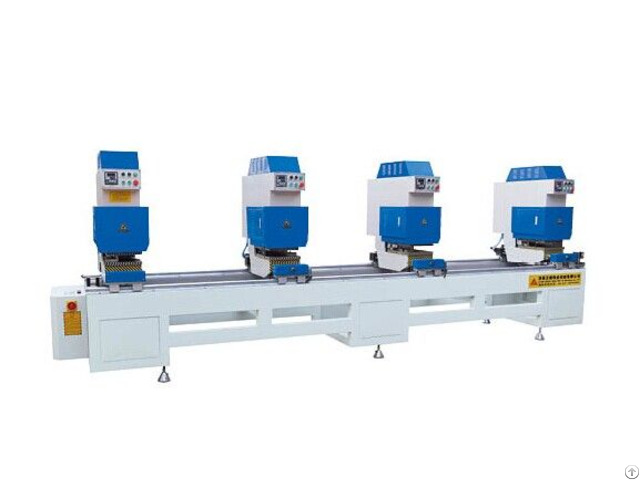

Four Seamless Welding Machine For Aluminum Pvc Window And Door Machines - China

price: 5200.00 Dollar US$

Main Features
1.Four head seamless welding machine is suit for welding colorful profiles(film, double color, spray etc)
2.It can clean the welding bead on upper surface and bottom surface and can control the size of welding seam make the corner good looking, top grade
3.Strengthen the hardness of welding through controlling the pneumatic system especially in the melting to ensure that welding hardness is the best
4.As cleaning the corner after welding, there are not slots on the corner surfaces, which increases the interface of welding by 10-10%
5.The welding strength is much better than common windows and doors
Technical Parameters
1. Operation air pressure 0.5-0.8MPA
2. Air consumption 270L/Min
3.Power voltage 220V/50HZ
4. Welding height 20mm-120mm
5.Welding Width 140mm
6. Oveall dimension 5500*1100*2100mm


Company Contact:


  • Phone: +86-531-88796991

  • Address: No 104, Daqiao Town, Jinan City, Shandong, China

  • Email: Email


Published date: July 27, 2016 -

  • Business Description: Jinan Zhengfeng Weiye Machinery Co., Ltd is a professional equipment manufactures of insulating glass equipment and aluminum PVC doors and windows. The company combined to research and development, production ,sales and service , has experienced experts and fully function mechanical processing capacity.
