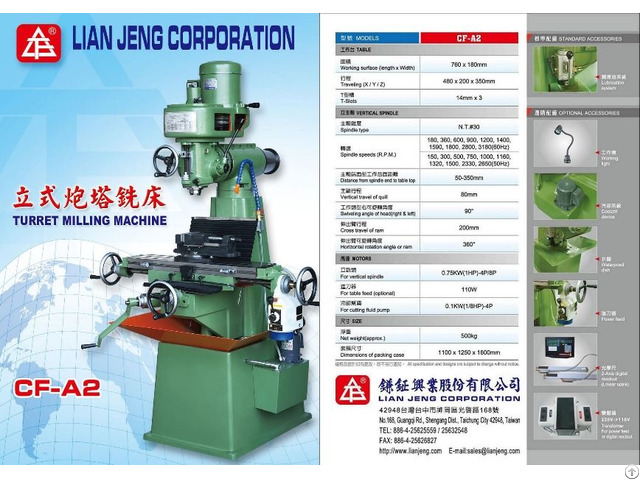

Small Vertical Milling Machine Cf A2 - Taiwan

price: 1.00 Dollar US$

Models (CF-A2)
Table
Working surface(length*Width) 760x180mm
Traveling (X / Y / Z) 480x200x350mm
T-Slots 16mmx3
VERTICAL SPINDLE
Spindle nose N.T.#30
Spindle speeds (R.P.M.) 180, 360, 600, 900, 1200, 1400, 1590, 1800, 2800, 3180(60Hz)
150, 300, 500, 750, 1000, 1160, 1320, 1500, 2330, 2650(50Hz)
Distance from spindle end to table top 50-350mm
Vertical travel of quill 80mm
Swiveling angle of head(right & left) 90°
Cross travel of ram 180mm
Horizontal rotation angle or ram 360°
Motors
For vertical spindle 0.75KW(1HP)-4P/8P
For table feed(optional) 0.1KW(1HP)-4P
For cutting fluid pump 0.1KW(1/8HP)-4P
Size
Net weight(approx.) 500kg
Dimensions of packing case 1300x1300x1600mm


Company Contact:


  • Phone: +886425625559

  • Address: No. 168, Guangqi Rd., Shengang Dist., Taichung City. , Taiwan

  • Email: Email


Published date: September 12, 2016 -

  • Business Description: LIAN-JENG CORPORATION was established in 1981.
    In the same year we launched the universal vertical and horizontal milling machines,
    whose quality and performance to provide guaranteed excellent machinery for customer's best choice.
    Nevertheless, to obtain better efficiency and consistent quality,
    we put great efforts into developing automatic hydraulic milling machine.
