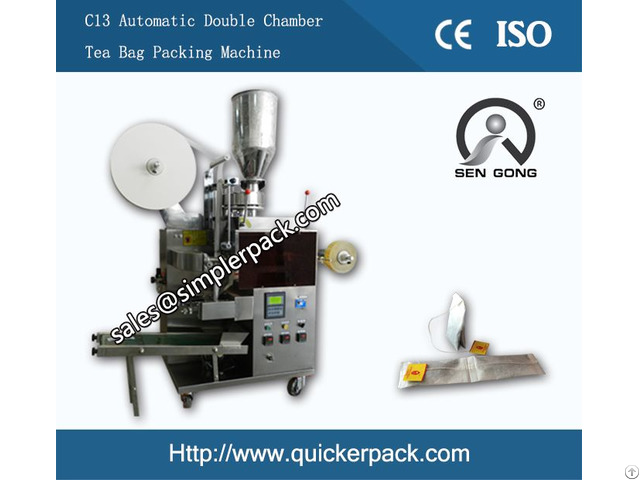

Automatic Double Chamber Tea Bag Packing Machine With Thread And Tag - China

Brief Introduction:

1)Automatic packaging machine;

2)Double chamber tea bag with thread and tag;

3)Suitable for all kinds of loose tea leaf and other ground drinking granules;

4)Cost effective;

5)All-round process: filing, weighting, bag forming, sealing, cutting and counting etc.

Application:

It is suitable for double chamber tea bag products packing, such as broken tea, coffee, ginseng essence, diet tea, health care tea, medical tea and herbal tea, etc.

Features:

1 - This can automatically complete bag making, filling, measuring, sealing, thread feeding, tag attaching, cutting and counting etc.

It would highly improve the working efficiency and reduce labor expense.

2 - Pins only need to be stapled by hand.

3 - PLC control system and automatic temperature control system are adopted, which can effectively control the sealing temperature within the standard range.

Technical data:

Machine type: Tea Bag Packing Machine Series

Machine model: C13

Machine name: Automatic Double Chamber Tea Bag Packing Machine

Packing material: Filter paper, Thread, Tag

Measuring: Measuring cup filler

Filling range: 3-15ml

Bag size: L: 150mm (80 +70 mm, bi-fold double chamber bag);

W: 40mm.

Similar to "Lipton" tea bags.

Filter paper width: 87mm

Tag size: L: 20mm, W: 25mm

Thread length: 155~200mm

Packing speed: 20~40 bags/min

Power supply: 220V/50HZ/1.6KW

Machine dimension: 900*950*1800mm(L*W*H)

Machine weight: 350KGS

Packaging Machinery Catalog:

1 - Flat Bag Tea Packaging Machine;

2 - Drip Coffee Packaging Machine;

3 - Triangle Nylon Bag Tea Packaging Machine;

4 - Tea Vacuum Packaging Machine;

5 - Powder Packaging Machine;

6 - Granules Packaging Machine;

7 - Liquid Packaging Machine;

8 - Food Smalls Packaging Machine;

9 - Herbs Packaging Machine;

10 - Pre-made Ziplock Bag Packaging Machine;

11 - Auger Filler Packaging Machine;

12 - Packing Auxiliary Machine;

13 - Packaging Materials.
