Thermoforming Packaging Machine Supplier - China

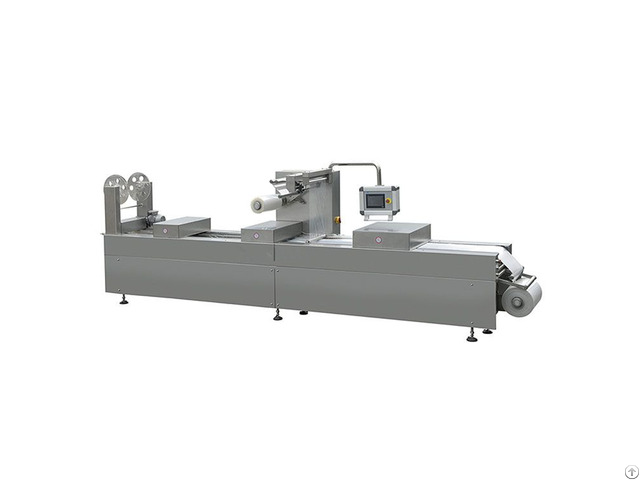

Thermoforming Packaging Machine

Automatic Vacuum Packaging Machine

MODEL NO:

RC420/520

SPECIFICATION:

Applications

Applicable for vacuum, gas and skin-packing with various food, meat, sea food, fruit, vegetable, medical and hardware items.

Main Features and Characteristics

1 - OMRON PLC, touch screen & servo motor are used with reliable performance and ease of operation;

2 - Modular moulds are applied that can be replaced easily and the machine can be used for multiple purposes;

3 - Photoelectric follow-up: color cover film or optical film can be used for packaging, which can reduce the cost and upgrade the products;

4 - With modular moulds, They can be replaced easily and can be used on several machines.

The moulds have a cooling system;

5 - Fitted with a scrap recycling system, good environment and health can be maintained;

6 - The mould adopts aluminum alloy materials, have good corrosion resistance and wearing resistance after Hardening treatment;

7 - With special holding chains, the packaging machine is applicable for extending and moulding of flexible film or rigid film of different thickness for special purpose packaging;

8 - With advanced horizontal and longitudinal cutting systems, the machine’s replacement operation is more convenient;

9 - There is a scrap and waste recycling system to help maintain environmental cleanness;

10 - Main part of the machine is made of stainless steel, that greatly improves the corrosion resistance of the equipment;

11 - The German Busch Pump is used on the machine, with high degree, steady quality and good durability.

Machine Item

Model ZG-420 ZG—520

Width of top film (mm) 396mm 496mm

Width of bottom film (mm) 422mm 522mm

Package style Vacuum & Gas Flush 200-500mm

Film Flexible/ Semi-rigid/ Rigid Flexible/ Semi-rigid/ Rigid

speed 4-6T/M 4-6T/M

Water cooling ≥0.15Mpa ≥0.15Mpa

Total power 10kw 10kw

Electric power 380V/50HZ 380V/50HZ

Compress air requirement(to be supplied by user) ≥0.6Mpa ≥0.6Mpa

Machine weight(kg) 2200kg 2450kg

Machine overall dimensions 6000×1050×2050mm 6500×1150×2050mm

Main Machine Structure

Main Machine Body Stainless steel

Mold Material Teflon coated aluminum

Mold Size According to Customer’s request

Chain REGINA

Top Film Roller Air-shaft(Mechanical brake)

Code Printer Auto type printer

Cutting System Horizontal punching cutting

Slitting Device Vertical wheel cutting

Discharge Conveyor 1000mm length

Scrap Recycling System Rolling rewinding type

Pre-made Pouch packaging Machinery

Rezpack headquartered in Zhejiang Ruian economic development zone, known as China’s cradle of packaging machinery, Rezpack Machinery Inc.

is a leading manufacturer of packaging machines.

It is an ISO9001 certified enterprise with more than two decades of experience in R&D, manufacturing, marketing and service.

All their products are CE compliant.

As the proud owner of more than 40 patents, Rezpack won the Ringier Technology Innovation Award in 2011 - The patents include technologies of feeding device, transmission mechanism, automatic production line, etc.

Rezpack also organized and held regular training sessions in order to keep themselves updated with the latest knowledge, new skills and current market needs and trends.

Company Contact:

• Posted By: Unionpack International Inc.

• Phone: 86-577-66618600

• Address: No.518 Kaifaer Road, Economic Development Zone, Ruian , Zhejiang , China

• Email:

• Website: http://www.unionpackmachine.com

• Business Description: Unionpack, as a professional overseas sales and service team for REZPACK who is one of Chinas preeminent packaging machinery manufacturers, with more than two decades of experience in packaging machinery industry, our machine have been delivered to over 3000 companies in 30 countries.

  Our partners and technical consultants can be found in Europe, America and Southeast Asia, bringing us techniques and expertise from all over the world.

  Rezpack is certified to ISO9001 and CE standards, and have obtained more than 200 patents.

  Home to over 200 talented employees, and the workshop spans 11000 square meters, we can produce 150 diverse sets of packing equipment in one month.

  Every machine is made based on customers requirements and carefully debugged before shipping.

  Our R&D team is comprised of more than 30 people, to develops new equipment to keep up with ever changing technology and market demands.

  Besides, we have a professional after-service team, comprised of 20 people, who can provide one-to-one video calling, door-to-door service, as well as free technical training for our partners.

  We do not only produce pouch packaging machine, thermoforming packaging machine but also cooperate with 15 professional factories to supply whole packaging solution.

  Out target is to create the extra value for our customers.

  The Customer is our Partner!
