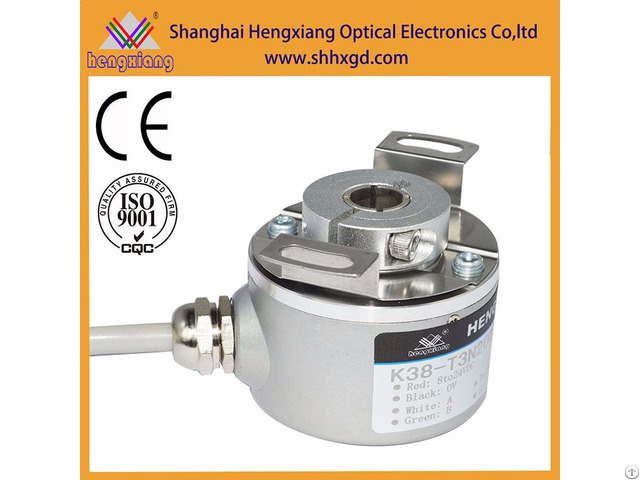

Hengxiang K38 Hollow Encoder With Diameter 50mm Shaft 8mm Npn Output Abz - China

price: contact company for price

Hengxiang K38 Hollow Encoder With Diameter 50mm Shaft 8mm Npn Output Abz

Products Photos Catalog Hengxiang K38 Hollow Photos Catalog

K38- Series Specification

Items HENGXIANG K38 incremental rotary encoder working principle shaft 8mm
External dimensions External diameter: 38mm
Thickness: 28mm
Shaft diameter: 5mm/6mm/8mm/6.35mm
Resolution 50;60;66;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000;8192;10000;16384
Output phase A, B, Z, A-, B-, Z-
Supply voltage DC5V & DC8-30V
Outlettype Cable out from side
Cable out from back
Output mode NPN&PNP
Voltage output
Push-pull output
Long line drive (26LS31)
Long line drive (RT7272), RS422
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 & IP65
Cable length 1M
Shell Aluminium
package Carton box
Net weight About 140g (with package)
Certification CE/ISO9001


Company Contact:


  • Phone: 021-54613487-8019

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang,Shanghai, songjiang, Shanghai, China

  • Email: Email


Published date: October 28, 2016 -

  • Business Description: Hengxiang encoder factory,
    Which can offer solid shaft, hollow shaft, incremental encoder, absolute encoder, quasi-sinusoidal encoder, etc.

    Revolution can up to 48000ppr.
    Max motor speed 24000rpm.
