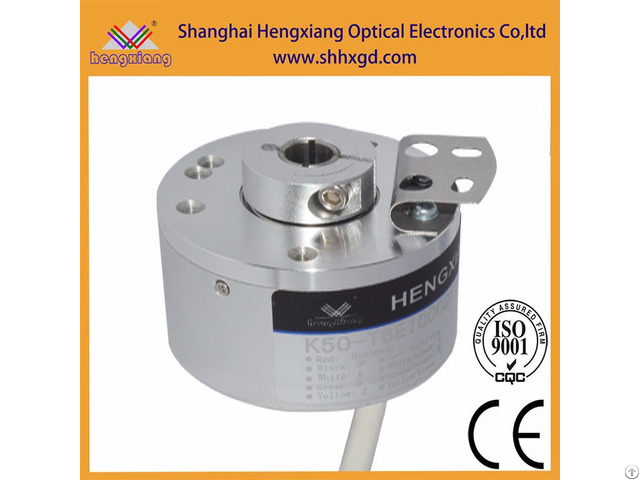

Hengxiang K50 Hollow Encoder Diameter 50mm Blind Shaft 14mm Npn Output - China

price: 40.00 Dollar US$

K50- Series Specification

Items HENGXIANG K50 decoding website about encoder hollow shaft 8mm
External dimensions External diameter: 50mm
Thickness: 30mm
Shaft diameter: 8mm/10mm/12mm/14mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000
8192;10000;11520;16384;20000;20340
Output phase Phase A, B, Z, A-, B-, Z-
Supply voltage DC5V & DC8-30V
Outlettype Cable out from side (with metal sleeve)
Cable out from back (for blind hole type only)
Output mode Collector open circuit output
Voltage output
Push-pull output
Difference output Long line drive (26LS31)
Long line drive (RT7272), RS422
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non- condensing)
Protection grade IP50
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Shell Aluminium
package Carton box
Net weight About 200g (with package)
Certification CE


Company Contact:


  • Phone: 021-54613487-8019

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang,Shanghai, songjiang, Shanghai, China

  • Email: Email


Published date: October 31, 2016 -

  • Business Description: Hengxiang encoder factory,
    Which can offer solid shaft, hollow shaft, incremental encoder, absolute encoder, quasi-sinusoidal encoder, etc.

    Revolution can up to 48000ppr.
    Max motor speed 24000rpm.
