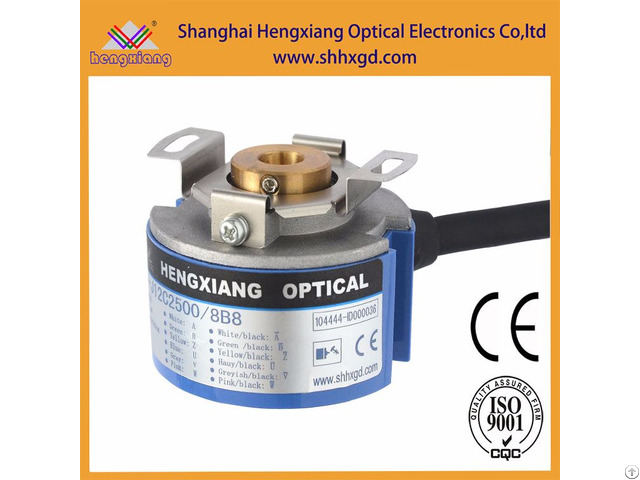

Hengxiang Kz48 Hollow Tapered Shaft Encoder With Diameter 48mm Thickness 34mm Abzuvw - China

price: 30.00 Dollar US$

Detail Specification


Items
KZ48 hollow shaft cone shaft 9mm incremental absolute rotary encoder
External dimensions
External diameter: 48mm
Thickness: 34mm
Shaft diameter: 9mm(taper shaft, 15mm depth, taper: 1:10)
Resolution
50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;
1024;1200;2000;2048;2500;
3000;3600
Output phase
Phase A, B, Z, A-, B-, Z-U, V, W, U-, V-, W-
Supply voltage
DC5V & DC12~24V

Cable out from side
Output mode
Collector open circuit output
Voltage output
Push-pull output
Difference output
Environmental temperature
Operating temperature: -10~+70° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity
Operating and storage: 35~85%RH (non-condensing)
Protection grade
IP50
Cable length
0.5M (cable length could be added appropriately by
require, but it need payment individually)
Shell
Aluminium
package
Carton box
Net weight
About 140g (Including package)


Company Contact:


  • Phone: 021-54613487-8019

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang,Shanghai, songjiang, Shanghai, China

  • Email: Email


Published date: October 28, 2016 -

  • Business Description: Hengxiang encoder factory,
    Which can offer solid shaft, hollow shaft, incremental encoder, absolute encoder, quasi-sinusoidal encoder, etc.

    Revolution can up to 48000ppr.
    Max motor speed 24000rpm.
