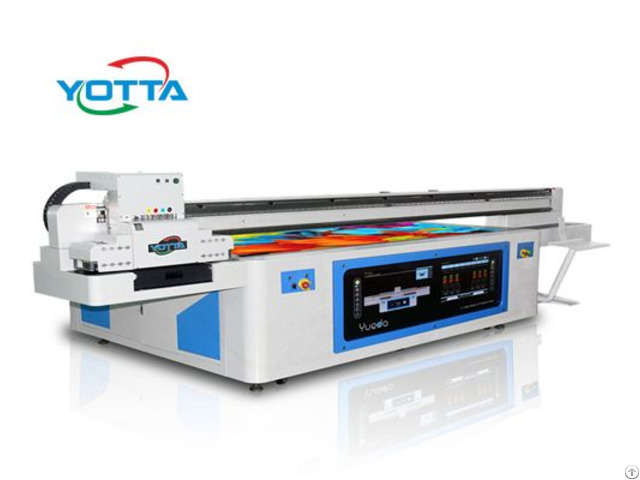

High Quality Yd3216 Rd Uv3d Mental Flatbed Inkjet Printer - China

price: 49000.00 Dollar US$

Adopting Ricoh Gen5 print heads, with components carefully chosen and humanization designs, YD3216-RD wide format UV flatbed printer has high performance in print speed and resolution. It delivers a superior compatibility with the widest range of substrates with multi bright colors on its large bed of 3200mm X 1600mm, including rigid and flexible materials up to 100mm thick and weighing up to 50kg per square meter.
In addition to the basic 6 colors (CMYK, LC, LM) printing mode, it also possess many kinds of white ink printing mode, varnish printing workable too. Therefore, this high quality printing machine has sufficient capacity to produce special effects, such as 3D effect, relief effect, gradient effect etc. Equipped with simple but high-end RIP software, the image quality is superior, meeting the requirements of all industries.

With YD3216-RD flatbed printer, you can print

Rigid materials: Glass, Ceramic, Metal plate, Wood, Acrylic panel, KT board, PVC sheet, Melamine sheet, Marble board, etc.
Flexible materials: Paper, Plastic film, Leather, Textile, etc.

Model YD3216-RD
Print size 3200×1600 mm
Print head Ricoh-Gen5 grey level piezo print head
Print resolution 600×2400 dpi
Print speed 4 Pass, 38 M2/h; 6 Pass, 29 M2/h; 8 Pass, 22 M2/h;
Print mode unidirectional and bidirectional
Ink color LM, LC, Y, M, C, K (Optional)
Special ink UV white ink or UV varnish
Ink type Environmental UV curing ink (NO VOC)
Number of head 3-8 pcs
Materials thickness Up to 100mm
Materials type Rigid and flexible materials
Software PhotoPrint, Seeget
Input format Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI
Power requirement 220V/AC(±10%), 50/60HZ;6KW
Printer weight 1500KG
Printer size 5150 mm[L]×2740 mm[W]×1400 mm[H]
Working environment Separate, little sunlight, ventilated workshop. Temperature: 18℃~30℃(64℉~86℉) Humidity: 30%~70%(Non-condensing) Ventilation equipment:Suggest Overhead exhaust fan, displacement 600 cfm

Company Contact:

  • Phone: 13925227012

  • Address: Gangbei Industrial Park,Baohe Road,Longgang District,Shenzhen, shenzhen, China

  • Email: Email

Published date: September 22, 2016 -

  • Business Description: Yueda specializes in manufacturing UV flatbed printer for over 8 years.Our printing machine can print any picture on any flat materials with embossment and 3D effect.
