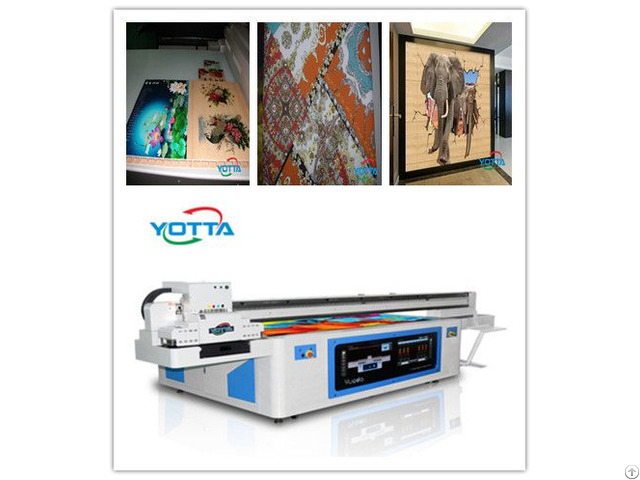

Yd3216 Rd Uv Flated Printer High Efficiency Advertisement Printing Machine - China

price: contact company for price

YD3216-KD UV Flatbed Printer adopts original imported Konica KM1024(14pl) print head, and it can print onto super huge flat materials which maximum print size is up to 3200mm*1600mm and thickness within 100mm. The materials including wood, glass, metal, leather, ceramics, stones, paper, PVC, clothes, plastics, buildings and so many more. The print effect of YD-3216-KD is vivid, the print speed is fast and can achieve mass production. It is the best machine for large scale industrial operation, and it can be used to print images onto large format glass, ceramic, metal background wall, entrance, screen and sliding doors etc.

Application fields:

Rigid materials:glass, ceramic, metal plate, wood, data plate.acrylic panel, KT board, PVC sheet, melamine sheet, marble board, etc.
Flexible materials:paper, plastic film, leather, texitle, etc.
Model YD3216-RD
Print size 3200×1600 mm
Print head Ricoh-Gen5 grey level piezo print head
Print resolution 600×2400 dpi
Print speed 4 Pass, 38 M2/h; 6 Pass, 29 M2/h; 8 Pass, 22 M2/h;
Print mode unidirectional and bidirectional
Ink color LM, LC, Y, M, C, K (Optional)
Special ink UV white ink or UV varnish
Ink type Environmental UV curing ink (NO VOC)
Number of head 3-8 pcs
Materials thickness Up to 100mm
Materials type Rigid and flexible materials
Software PhotoPrint, Seeget
Input format Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI
Power requirement 220V/AC(±10%), 50/60HZ;6KW
Printer weight 1500KG
Printer size 5150 mm[L]×2740 mm[W]×1400 mm[H]
Working environment Separate, little sunlight, ventilated workshop. Temperature: 18℃~30℃(64℉~86℉) Humidity: 30%~70%(Non-condensing) Ventilation equipment:Suggest Overhead exhaust fan, displacement 600 cfm

1. About the price and quality?
We can not say we are the best supplier, but we are honesty for our quality and price. Good quality is our first rule, and good service is our mission. We produce machines as 5S management rules, and ISO standard.

2. Why do you choose our factory?
We produce flatbed printing machine, digital flatbed printer is a new product in printing industry, it can
print on the surface for various kinds of flat objects directly, such as crystal, leather, glass, metal, ceramic
tile, PVC, PP, PE and so on. Any pictures can be printed on the surface of the subjects by the printer with
high resolution, it is the fastest flatbed printer on the current market.And we will keep you with a best
service, give us a chance, also give your a chance to know this field if you really want to know this printer.
3. What is the printer operation?
a. Through a digital camera or scanner to get File sources of pictures.
b. Through the computer images to typesetting modified document layout.
c. Through the universal printer output files to print.
d. Print objects requirements.


Company Contact:


  • Phone: 13925227012

  • Address: Gangbei Industrial Park,Baohe Road,Longgang District,Shenzhen, shenzhen, China

  • Email: Email


Published date: September 22, 2016 -

  • Business Description: Yueda specializes in manufacturing UV flatbed printer for over 8 years.Our printing machine can print any picture on any flat materials with embossment and 3D effect.
