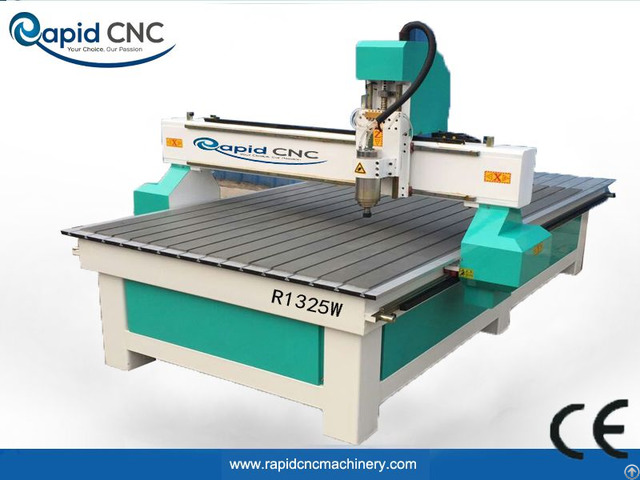

3d Cnc Router - China

price: 5000.00 Dollar US$

Technical parameters:
No Description Parameter
1
effective working area:
1300x2500x200 mm
2
Table Size:
1850X3100mm
3
Positioning Accuracy:
±0.01/300mm
4
X, Y, Z repositioning Accuracy:
±0.05mm
5
Table Surface:
T-slot table
6
Frame:
Heavy steel welded
7
X, Z Structure:
Taiwan TBI square orbits
8
Y Structure:
TBI Rail Linear Bearings and Ball Screw
9
Max. Power Consumption:
<2000W
10
Max. Rapid Travel Rate:
25000mm/min
11
Max. Working Speed:
15000mm/min
12
Spindle Power:
4.5KW Water cooling spindle
13
Spindle Speed:
0-24000RPM
14
Drive Motors:
Stepper system
15
Working Voltage:
AC380V/50Hz, 3PH
16
Command Language:
G code
17
Operating System:
DSP System (options: NC studio)
18
Computer Interface:
USB
19
Flash Memory:
128M(U Disk)
20
Collet:
ER20
21
Software Compatibility:
Type3/UcancameV9 software, (Option: Artcam software)


Company Contact:


  • Phone: 008653188984832

  • Address: No.168-1, Huashan Industrial Area, jinan , shandong, China

  • Email: Email


Published date: November 27, 2016 -

  • Business Description: CNC Router machine
    CNC Laser machine
    Laser cutting machine
    plasma cutting machine
    Fiber laser cutting machine
    stone carving machine
    cnc woodworking machine
    cnc router wood
    cnc wood router
    3D cnc router
    cnc laser machine
    cnc router for metal
    cnc router for stone
