ATC CNC Router with Umbrella Type Auto Tool Changer Mechanism

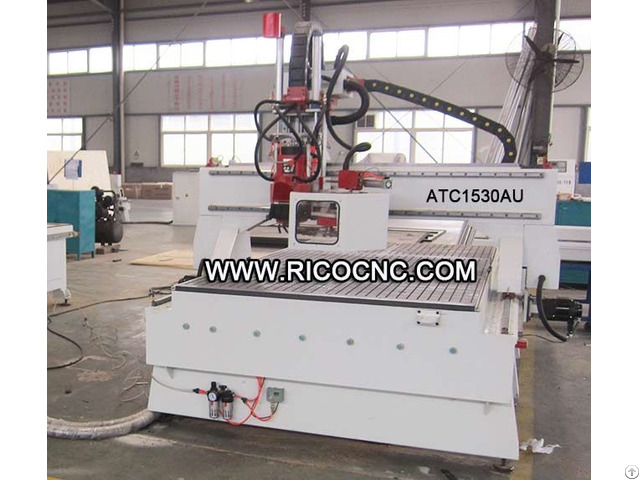

Model: ATC1530AU

This auto tool changer (ATC) cnc router is with ATC router spindle, 8-10 tools auto change, different from multi spindle tool changer machine.

This auto tool changer CNC machine is suit for diverse complexity products processing, wide functions: engraving and milling, drilling, cutting, chamfering edge and so on.

Many tools autochanger, functional and save time and labor power.

Auto Tool Changer CNC Applicable industry and material:

1 - Furniture: wooden doors, cabinets, plate, ofice and wod furniture, tables, chair, doors and windows.

2 - The wood products: voice box, game cabinets, computer tables, sewing machine table, instruments.

3 - Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Beta board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

4 - Decorate industry: Acrylic, PVC, MDF, artifical stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

5x10 Auto Tool Changer Descriptions: CNC router auto tool changer ATC1530AU

1 - Taiwan SYNTEC EZ4 control system

2 - Italy HSD 9kw air cooling spindle

3 - Japan Yaskawa servo motor and driver 4 sets

4 - Whole steel structure, heavy lathe bed

5 - Vacuum table with 5.5kw air vacuum pump

6 - Disc type Tool Magazine with 8 tools station

7 - High precision Taiwan HIWIN 30 square guide rail

8 - Rack and pinion for X Y axis, Taiwan TBI Ball screw for Z axis.

9 - With dust collect cover

10 - Fuling Inverter 11KW

11 - Design software: Artcam, type3 and Wentai

12 - Two sets tools (24 tools), collets and wrench

13 - Working area: 1500*3000mm

14 - 6 vacuum suction zone controlled by electromagnetic valves

15 - Tool holder: 3pcs for free

16 - Oil-injection lubrication system

17 - Taiwan planetary gear reducer

18 - Z axis with balance cylinder Umbrella Type Tool Changer Mechanism CNC Router Parameters:
