Cnc Pressure Foot Clamping Tool Kit Hold Down Clamps For Spindle - Chinaprice: contact company for price
Model: Diameter: 65mm, 73mm, 80mm, 100mm, 105mm, 125mm

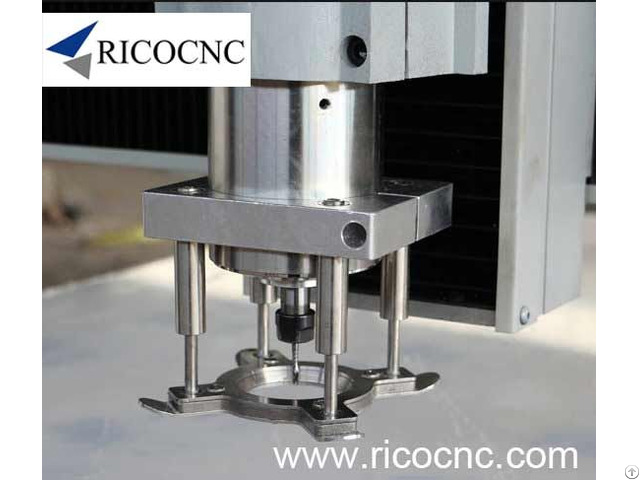

This diy CNC presser foot clamping tool kit press the workpiece with the cnc router spindle, provides clamping force directly around the cutter bit. The CNC pressure foot attaches to the Z axis spindle of your CNC router and provides clamping force directly around the cutter bit. This clamping approach is particularly effective for machining small parts and thin/flexible materials that cannot be held by traditional clamping methods.
Adjustable body comes complete with precision machined bearings, hardened and ground slides, and round rolling balls to prevent scratches or marks on delicate finishes.
As cnc clamping methods have vacuum clamping, edge clamping, screws/brad nails, etc, but each has its advantage and disadvantage. This cnc pressure foot is designed to compensate for some material warping and tables that are not perfectly flat, particularly effective for machining small parts and thin/flexible materials that cannot be held by traditional clamping methods without using tabs or adhesives.
This CNC pressure foot is compatible with most CNC routers and CNC milling machines. It is mounted onto your cnc router spindle, similar to many dust collect covers, and provides clamping force directly around the cutter bit.
CNC Presser Foot Clamping Specific applications:
1, Small Parts and Letters: Small parts and letters are not convenient to hold by vacuum suction and T slot clamps. Our CNC clamping kit eliminates the headaches while saving time and money.
2, Workpiece with a lot of holes: Large parts that are full of holes can be a CNC machining nightmare. Without tabs, they don't have the surface area required for universal vacuum clamping and the remaining material is not available for clamps fixing. Our CNC clamping system does the job without wrinkles, scrapers or chemicals.
3, Thin & Flexible Materials: Even with the use of tabs, many thin plastics, metals, and wood veneers cannot be cut by a CNC router using vacuum clamping or edge clamping. These delicate materials are easily damaged by double-sided tape. Our CNC workpiece pressure provides quick and easy clamping for thin and flexible materials without costly accidents.
CNC Router Presser Foot Applications materials:
Suitable for any kinds of Acrylic, thin aluminum board, plastic board, PVC board, PCB, EVA board, double color board, MDF board, etc, especially for panels within 10mm thickness, like PCB prototyping etc.
We can produce customized size CNC press foot for your unique spindle.
