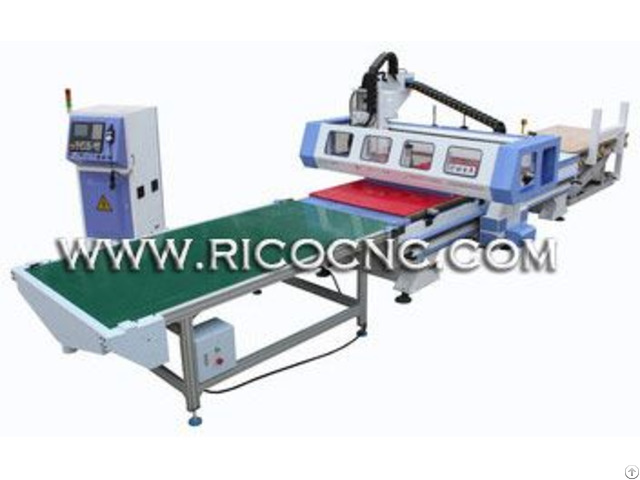

Nesting Solution Auto Feeding ATC CNC Router with Automatic Loading and Unloading System

Model: ALC1325ATC The ATC1325-8C panel furniture solution is a high-speed, automatic load/unload, heavy-duty CNC routing system for nested based feed through machining.

It is a multi function cnc center for panal furniture cutting and drilling, instead of the traditional labor production process.

It is used in nested based production of cabinets, closets and custom furniture.

Automatic Loading and Unloading System Wood CNC Router Main Configuration:

1 - 9KW Italy HSD air cooling spindle

2 - Taiwan Syntec control system

3 - 850W Japan YASKAWA Servo motor and driver

4 - Automatic loading/unloading table

5 - Disc Type Tools Changer CNC Router Automatic Loading and Unloading Features:

1 - Automatical feeding

Suck the board to the next process automatically.

2 - Automatical CNC processing

With automatical tool changer, can cutting, milling, drilling, engraving, etc.

automatically.

3 - Automatical discharge

After process, the boards are discharged automatically.

Auto Feeding CNC Router Machine Parameters: Technical

ALC1325ATC

Control system

Taiwan Syntec

Working range

1300*2500*230mm

Repositioning resolution

±0.02mm

Resolution

±0.0025mm

Spindle model

Italy HSD 9KW ATC spindle

Spindle speed

6000-24000rmp/min

Max speed

60m/min

Max cutting speed

25m/min

Driver

Japan YASKAWA 850W

Square gide rails

Taiwan 30 Square Rails

Oil system

Automatic Oil System

Vacuum pump

Water cooled Vacuum pump

Tool Holders

Disc Type 8 tools

Body Structure

Heavy Duty Type

Inverter

Fuling 11KW

Electric Pars

Zhengtai/Schineider


Weight

2500KG Nesting Solution ATC CNC Router Suitable Industry:

Office furniture, wood cabinet furniture and furniture customized etc.

Automation is considered the fastest route to improving productivity and profitability in the manufacturing sector.

There can be wide ranging benefits for extending a CNC cutting machine with an automated sheet loader.

While this might make the CNC router seem more expensive, it can quickly bring returns on investment (ROI) through improved productivity in a number of areas.

The RICO automatic sheet loader allows automation of the production process straight from the pallet, doing away with any operator intervention when lifting from the material stack to the machine, which results in lean manufacturing and higher profits.

An automatic loader can handle most materials and thickness.

The RICO sheet loading system includes an automated scissor lift that automatically elevates a whole pallet of material to table height.

This is integrated with the CNC router gantry, which includes a powerful lifting arm fitted with automated vacuum cups.

While the machine is doing its work, the RICO sheet lifter positions the next sheet on the loading station behind the machine’s table.

In conjunction with the CNC controller, the arm automatically picks up the material from a designated area and transports it safely onto the machine table.

The unit positions the sheet against the side and back stops, and then automatically starts the CNC cutting process.

With the sheets lifted off the pack using vacuum, there is no damage to sheets or the machine, which can happen with manual handling.

After cutting, the optional pusher bar can also unload the cut panels onto an unloading table or conveyor system.

The pusher can also be fitted with a vacuum cleaning head to extract any loose particle from the base board to retain optimum vacuum hold-down on subsequent jobs.
